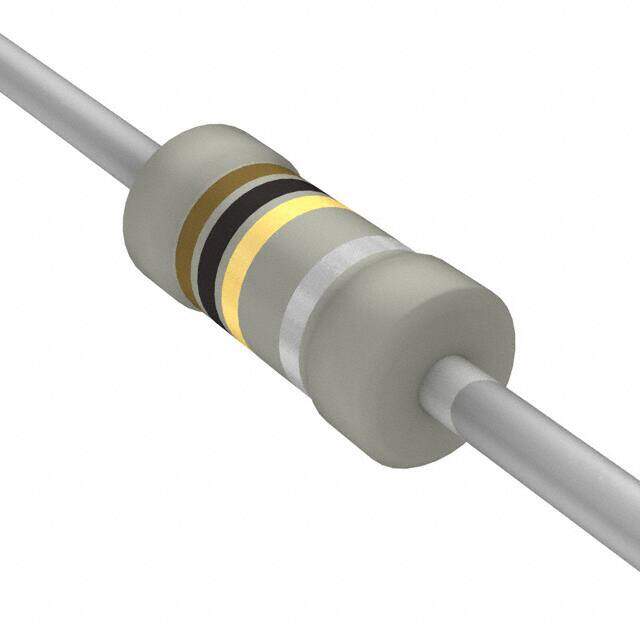

B78108S1102K009 image
Favorite
B78108S1102K009 image
Favorite

B78108S1102K009

TDK Electronics Inc.
RoHS
RoHS RoHS compliant
Package Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description RF Choke Drum Core 1uH 10% 1MHz 55Q-Factor Ferrite 1.2A 160mOhm DCR AXL Automotive Ammo Pack
PDF
/
Buying Options
Total Price: USD $0.28
Unit Price: USD $0.280015
≥1 USD $0.280015
≥200 USD $0.111728
≥500 USD $0.107999
≥1000 USD $0.106148
Inventory: 6586
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 26 Weeks

Physical

Mounting Type Through Hole
Package / Case Axial
Supplier Device Package Axial
Material - Core Ferrite

Technical

Operating Temperature -55°C~125°C
Packaging Tape & Box (TB)
Published 2012
Series BC
Size / Dimension 0.157Diax0.362L 4.00mmx9.20mm
Tolerance ±10%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Wirewound
Current Rating (Amps) 1.2A
Shielding Unshielded
Inductance 1μH
DC Resistance (DCR) 160mOhm Max
Frequency - Self Resonant 205MHz
Q @ Freq 55 @ 7.96MHz
Inductance Frequency - Test 7.96MHz

Compliance

RoHS Status ROHS3 Compliant
