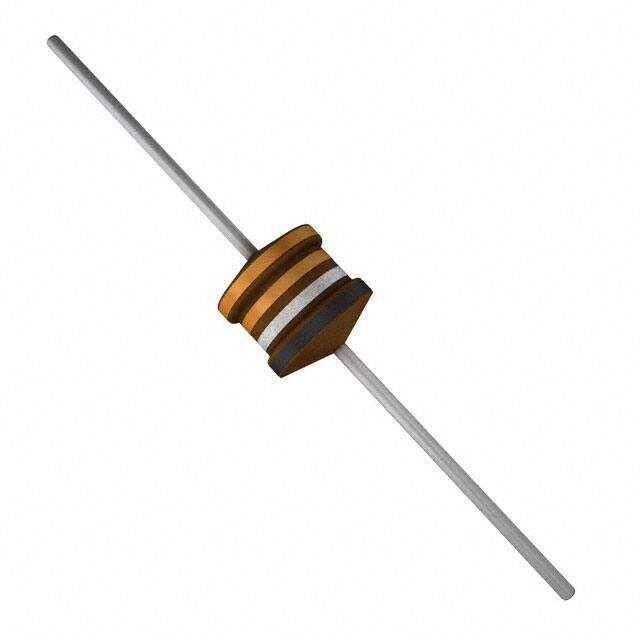

B78108E1331M000
RoHS
RoHS compliant
RoHS compliantPackage Axial
Category Inductors, Coils, Chokes / Fixed Inductors
Description
BC+ Axial 0.157Diax0.374L 4.00mmx9.50mm 330nH
PDF
/
Buying Options
Total Price: USD $0.33
Unit Price: USD $0.3256
≥1 USD $0.3256
≥10 USD $0.26224
≥100 USD $0.242176
≥500 USD $0.221936
≥1000 USD $0.195712
≥3000 USD $0.189658
Inventory: 5058
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mounting Type Through Hole
Package / Case Axial
Material - Core Ferrite
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Series BC+
Size / Dimension 0.157Diax0.374L 4.00mmx9.50mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Current Rating (Amps) 5.3A
Shielding Unshielded
Reach Compliance Code not_compliant
Inductance 330nH
DC Resistance (DCR) 23mOhm Max
Frequency - Self Resonant 480MHz
Q @ Freq 60 @ 7.96MHz
Inductance Frequency - Test 1MHz
Current - Saturation 10.1A
Compliance
RoHS Status ROHS3 Compliant
