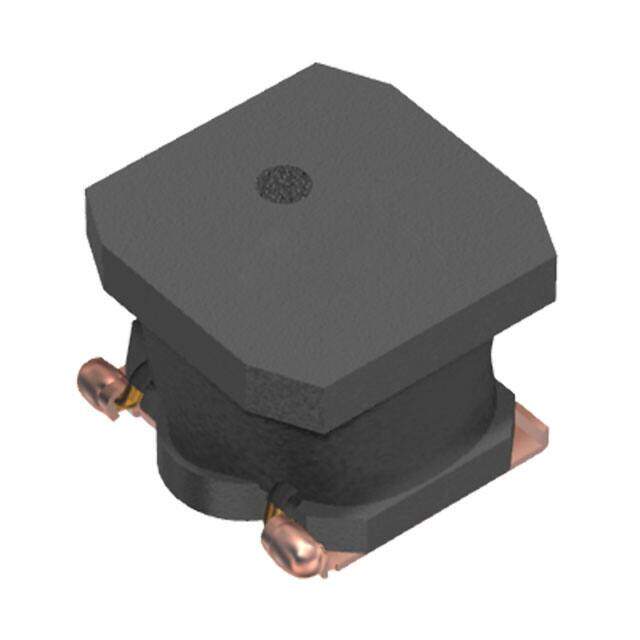

VLS6045EX-471M

TDK Corporation
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description VLS-EX Nonstandard 0.236Lx0.236W 6.00mmx6.00mm 470muH
PDF
/
Buying Options
Total Price: USD $0.36
Unit Price: USD $0.3608
≥1 USD $0.3608
≥10 USD $0.3124
≥100 USD $0.286528
≥500 USD $0.260656
≥1000 USD $0.231968
≥3000 USD $0.218909
Inventory: 11569
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.177 4.50mm

Technical

Current - Saturation 400mA
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 2.14Ohm
Inductance 470μH
Shielding Shielded
Current Rating (Amps) 420mA
Type Wirewound
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.236Lx0.236W 6.00mmx6.00mm
Series VLS-EX
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C

Physical

Material - Core Ferrite
Package / Case Nonstandard
Mounting Type Surface Mount

Supply Chain

Factory Lead Time 12 Weeks
