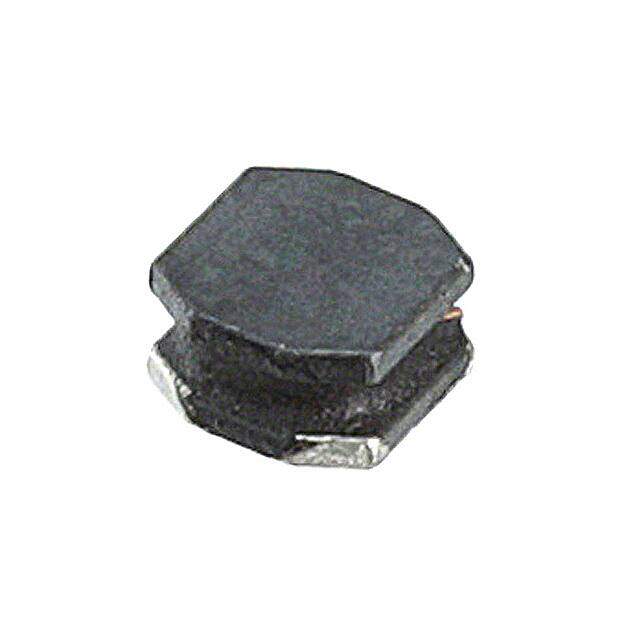

VLS2012ET-100M
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
VLS Nonstandard 0.079Lx0.079W 2.00mmx2.00mm 10muH
PDF
/
Buying Options
Total Price: USD $0.28
Unit Price: USD $0.2816
≥1 USD $0.2816
≥10 USD $0.22704
≥100 USD $0.20944
≥500 USD $0.192016
≥1000 USD $0.169224
≥3000 USD $0.163997
Inventory: 2311
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Lifecycle Status PRODUCTION (NOT RECOMMENDED FOR NEW DESIGN) (Last Updated: 2 weeks ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE
Core Material Ferrite
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2013
Series VLS
Size / Dimension 0.079Lx0.079W 2.00mmx2.00mm
Tolerance ±20%
Pbfree Code yes
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Packing Method TR, 7 Inch
Shielding Shielded
Number of Functions 1
Depth 2.1mm
Current Rating 470mA
Case Code (Metric) 2012
Case Code (Imperial) 0805
Inductance 10μH
Test Frequency 1MHz
DC Resistance (DCR) 834mOhm Max
Max DC Current 520mA
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Case/Size Code 0808
Inductance Tolerance 20%
RMS Current (Irms) 530mA
Dimensions
Height 1.2mm
Height Seated (Max) 0.047 1.20mm
Compliance
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
