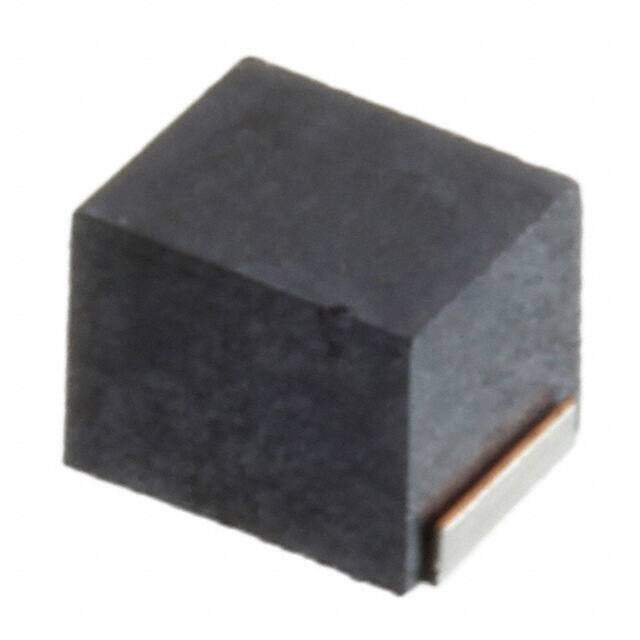

NLFV32T-151K-EFT
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
NLFV Nonstandard 0.126Lx0.098W 3.20mmx2.50mm 150muH
PDF
/
Inventory: 8613
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 2.4892mm
Length 3.2004mm
Height Seated (Max) 0.094 2.40mm
Height 2.2mm
Technical
Inductance Frequency - Test 796kHz
Max DC Current 50mA
DC Resistance (DCR) 3.48Ohm Max
Test Frequency 796kHz
Inductance 150μH
Case Code (Imperial) 1210
Case Code (Metric) 3225
Current Rating 50mA
Shielding Shielded
Current Rating (Amps) 50mA
Composition Wirewound
Min Operating Temperature -40°C
Max Operating Temperature 105°C
Type Wirewound
Termination SMD/SMT
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Not For New Designs
Tolerance ±10%
Size / Dimension 0.126Lx0.098W 3.20mmx2.50mm
Series NLFV
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Material - Core Ferrite
Weight 15.989131mg
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
