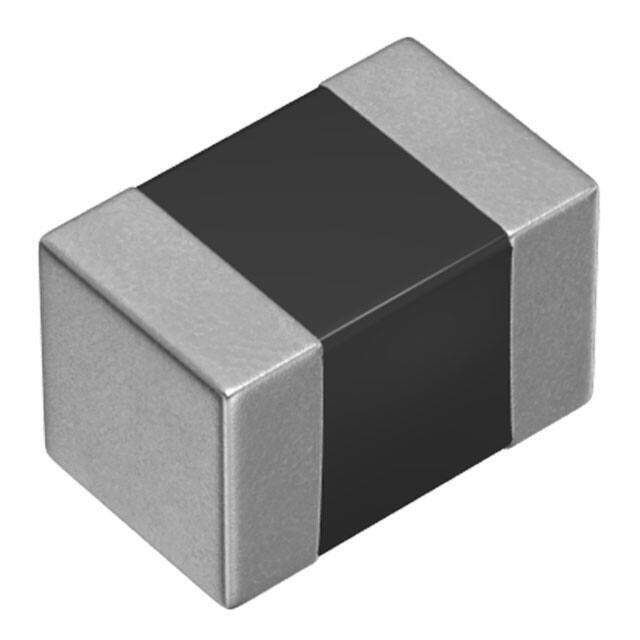

MLZ2012A2R2WTD25
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
MLZ 0805 (2012Metric) 0.079Lx0.049W 2.00mmx1.25mm 2.2muH
PDF
/
Buying Options
Total Price: USD $0.13
Unit Price: USD $0.132
≥1 USD $0.132
≥10 USD $0.10912
≥100 USD $0.10032
≥500 USD $0.088352
≥1000 USD $0.077352
≥3000 USD $0.073638
Inventory: 1247
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Lifecycle Status PRODUCTION (Last Updated: 2 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Terminal Shape WRAPAROUND
Weight 5.499807mg
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2013
Series MLZ
Size / Dimension 0.079Lx0.049W 2.00mmx1.25mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Multilayer
Resistance 260mOhm
HTS Code 8504.50.80.00
Packing Method TR, PUNCHED PAPER, 7 INCH
Shielding YES
Number of Functions 1
Construction Rectangular
Current Rating 650mA
Case Code (Metric) 2012
Case Code (Imperial) 0805
Inductance 2.2μH
Test Frequency 10MHz
DC Resistance (DCR) 150mOhm
Max DC Current 650mA
Terminal Placement DUAL ENDED
Current - Saturation 210mA
Special Feature DC RESISTANCE IS MEASURED AT : 30%, INDUCTANCE IS MEASURED AT 1 MILLI AMPERE
Dimensions
Height 850μm
Height Seated (Max) 0.041 1.05mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
