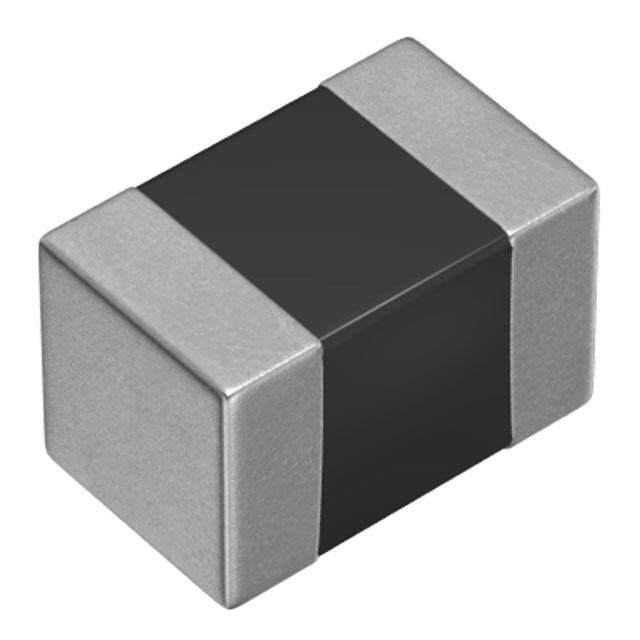

MLZ2012A1R0M image
Favorite
MLZ2012A1R0M image
Favorite

MLZ2012A1R0M

TDK Corporation
RoHS
/
Package /
Category Inductors, Coils, Chokes / Fixed Inductors
Description 1muH 20%
PDF
/
Inventory: 2986
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Width 1.25mm
Length 2.0066mm
Height Seated (Max) 1.0414mm
Height 1.25mm

Technical

Special Feature DCR IS MEASURED AT 30% TOLERANCE
Inductance-Nom (L) 1 μH
DC Resistance (DCR) - Parallel 100mOhm
Current - Saturation 280mA
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 160MHz
Max DC Current 900mA
Test Frequency 10MHz
Inductance 1 μH
Case Code (Imperial) 0805
Case Code (Metric) 2012
Current Rating 900mA
Number of Functions 1
Shielding Shielded
Packing Method TR
HTS Code 8504.50.80.00
Min Operating Temperature -55°C
Max Operating Temperature 125°C
Terminal Finish Tin (Sn)
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Pbfree Code yes
JESD-609 Code e3
Tolerance 20%
Packaging Digi-Reel?

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Mount Surface Mount
