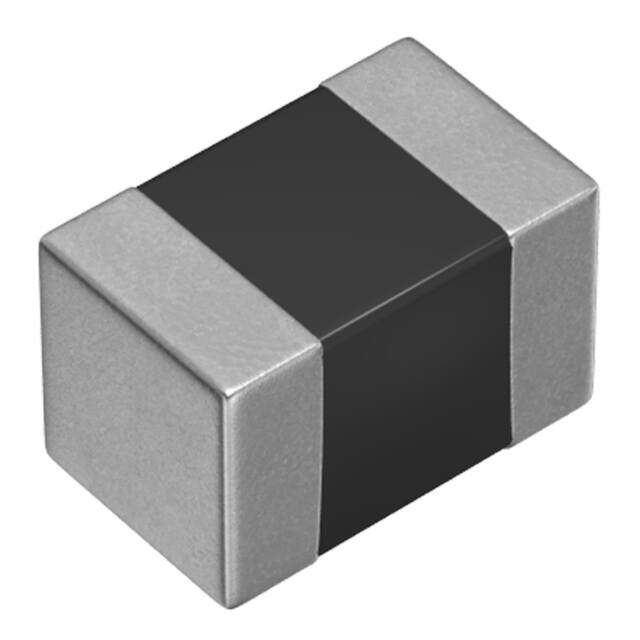

MLP2012VR47MT0S1
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
MLP 0805 (2012Metric) 0.079Lx0.049W 2.00mmx1.25mm 470nH
PDF
/
Buying Options
Total Price: USD $0.28
Unit Price: USD $0.284723
≥1 USD $0.284723
≥10 USD $0.268611
≥100 USD $0.253405
≥500 USD $0.239056
≥1000 USD $0.225529
Inventory: 1101
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Lifecycle Status PRODUCTION (Last Updated: 2 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Cut Tape (CT)
Published 2014
Series MLP
Size / Dimension 0.079Lx0.049W 2.00mmx1.25mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Multilayer
HTS Code 8504.50.80.00
Packing Method TR
Shielding NO
Number of Functions 1
Current Rating 1.1A
Case Code (Metric) 2012
Case Code (Imperial) 0805
Inductance 470nH
Test Frequency 2MHz
DC Resistance (DCR) 143mOhm Max
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 2MHz
Special Feature DCR MEASURED AT 30% TOLERANCE
Dimensions
Height Seated (Max) 0.039 1.00mm
Compliance
RoHS Status ROHS3 Compliant

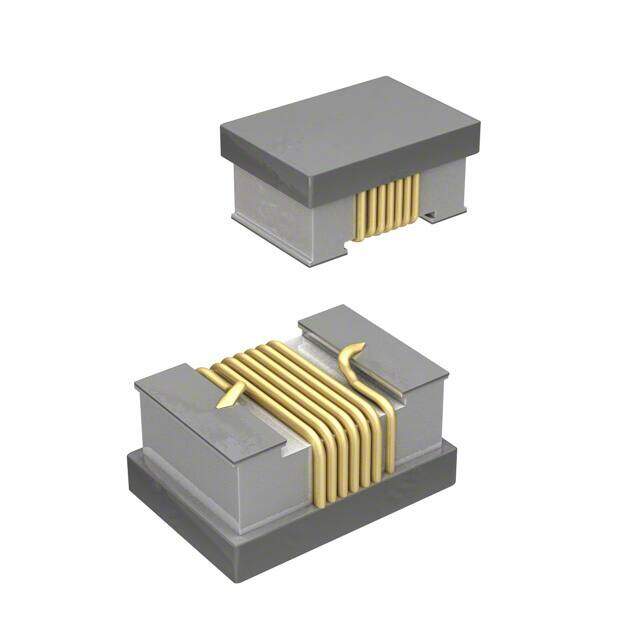

Alternative Model
