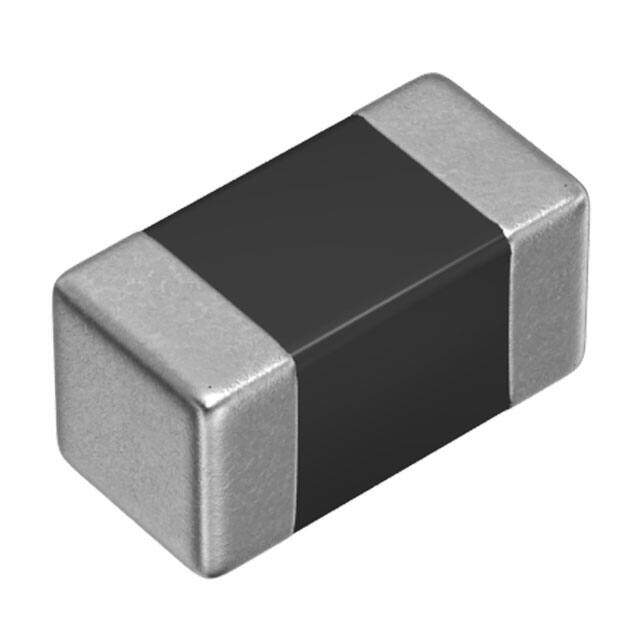

MLF1005LR22KT
RoHS
RoHS compliant
RoHS compliantPackage 0402 (1005 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
MLF 0402 (1005Metric) 0.039Lx0.020W 1.00mmx0.50mm 220nH
PDF
/
Inventory: 9441
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Surface Mount
Package / Case 0402 (1005 Metric)
Surface Mount YES
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~85°C
Packaging Tape & Reel (TR)
Published 2001
Series MLF
Size / Dimension 0.039Lx0.020W 1.00mmx0.50mm
Tolerance ±10%
Pbfree Code yes
Part Status Not For New Designs
Number of Terminations 2
ECCN Code EAR99
Type Multilayer
HTS Code 8504.50.80.00
Packing Method TR, 7 Inch
Shielding Shielded
Number of Functions 1
Inductance 220nH
Test Frequency 25MHz
DC Resistance (DCR) 790mOhm Max
Max DC Current 110mA
Frequency - Self Resonant 290MHz
Inductor Application RF INDUCTOR
Terminal Placement DUAL ENDED
Q @ Freq 10 @ 25MHz
Quality Factor-Min (at L-nom) 10
Inductance Frequency - Test 25MHz
Dimensions
Height Seated (Max) 0.022 0.55mm
Compliance
RoHS Status ROHS3 Compliant
