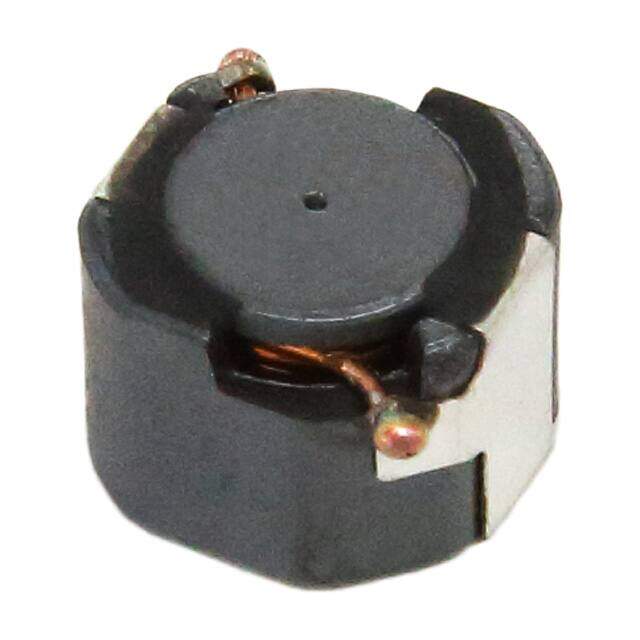

CLF6045T-151M-CA
RoHS
/
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CLF-CA Nonstandard 0.244Lx0.232W 6.20mmx5.90mm 150muH
PDF
/
Inventory: 3229
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 25 Weeks
Lifecycle Status OBSOLETE (Last Updated: 2 months ago)
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Weight 599.989307mg
Material - Core Ferrite
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2012
Series CLF-CA
Size / Dimension 0.244Lx0.232W 6.20mmx5.90mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
Type Wirewound
Max Operating Temperature 105°C
Min Operating Temperature -40°C
Composition Wirewound
Current Rating (Amps) 600mA
Shielding Shielded
Current Rating 600mA
Inductance 150μH
Test Frequency 100kHz
DC Resistance (DCR) 576mOhm Max
Max DC Current 500mA
Inductance Frequency - Test 100kHz
Current - Saturation 500mA
Dimensions
Height 4.5mm
Height Seated (Max) 0.189 4.80mm
Length 6.1976mm
Width 5.8928mm
Compliance
RoHS Status RoHS Compliant
Ratings AEC-Q200
