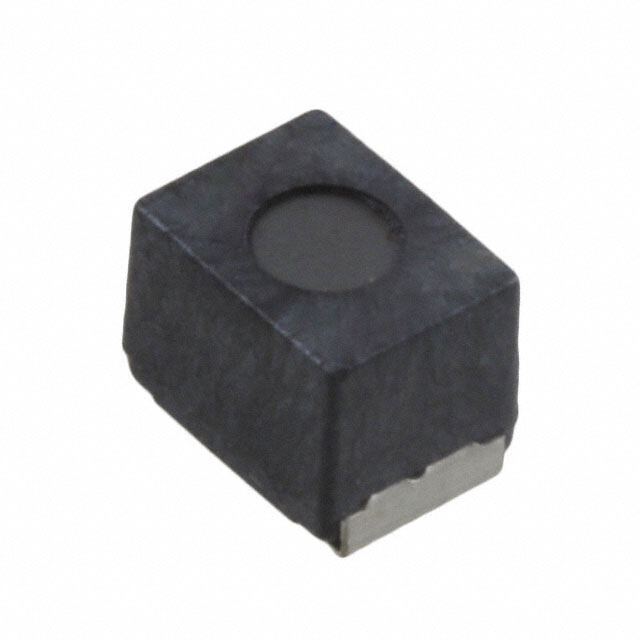

B82432C1472K
RoHS
/
Package 1812
Category Inductors, Coils, Chokes / Fixed Inductors
Description
RoHS Compliant Lead Free Cut Tape (CT) 4532 Fixed Inductor 40MHz 650mOhm 4.7muH 10%
PDF
/
Inventory: 2131
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Package / Case 1812
Material - Core Ferrite
Technical
Packaging Cut Tape (CT)
Tolerance 10%
Composition Wirewound
Shielding Unshielded
Depth 3.4mm
Current Rating 390mA
Military Standard Not
Case Code (Metric) 4532
Case Code (Imperial) 1812
Inductance 4.7 μH
Test Frequency 1MHz
Max DC Current 390mA
Frequency - Self Resonant 40MHz
DC Resistance (DCR) - Parallel 650mOhm
DC Current 390mA
Dimensions
Height 3.2004mm
Height Seated (Max) 3.4036mm
Length 4.4958mm
Width 3.2004mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
Ratings AEC-Q200
