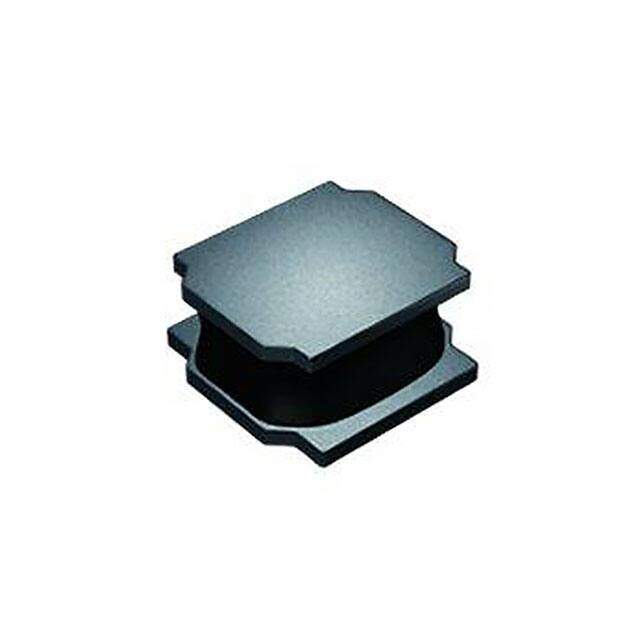

NRV2012T1R5NGF
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
NR V Type Nonstandard 0.079Lx0.079W 2.00mmx2.00mm 1.5muH
PDF
/
Buying Options
Total Price: USD $0.18
Unit Price: USD $0.1848
≥1 USD $0.1848
≥10 USD $0.14784
≥100 USD $0.136224
≥500 USD $0.12496
≥1000 USD $0.110176
≥3000 USD $0.106726
Inventory: 566
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Surface Mount YES
Terminal Shape ONE SURFACE
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -25°C~120°C
Packaging Tape & Reel (TR)
Published 2015
Series NR, V Type
Size / Dimension 0.079Lx0.079W 2.00mmx2.00mm
Tolerance ±30%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Current Rating (Amps) 1.4A
Packing Method TR
Shielding Unshielded
Number of Functions 1
Construction Magnetically Shielded
Inductance 1.5μH
Test Frequency 0.1MHz
DC Resistance (DCR) 120mOhm Max
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Current - Saturation 1.8A
Case/Size Code 0808
Rated Current-Max 1.4A
Dimensions
Height Seated (Max) 0.047 1.20mm
Compliance
RoHS Status ROHS3 Compliant
