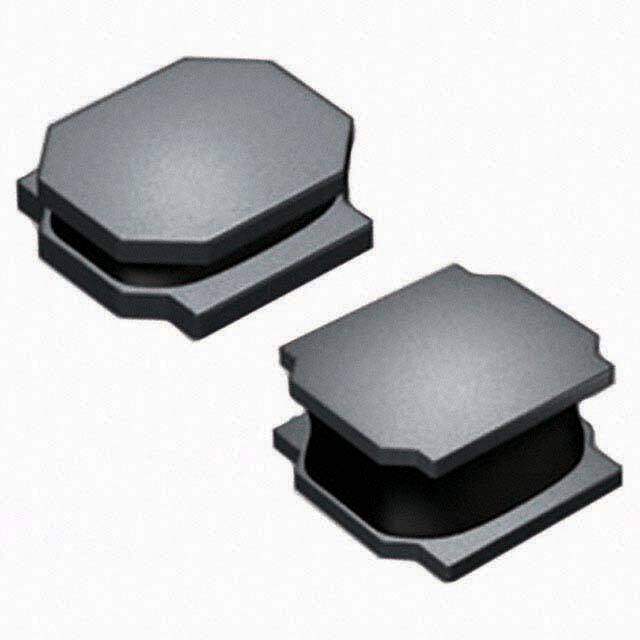

NRH3010T4R7MNV
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
NR H Type Nonstandard 0.118Lx0.118W 3.00mmx3.00mm 4.7muH
PDF
/
Buying Options
Total Price: USD $0.27
Unit Price: USD $0.2728
≥1 USD $0.2728
≥10 USD $0.22264
≥100 USD $0.205216
≥500 USD $0.188144
≥1000 USD $0.165968
≥3000 USD $0.160829
Inventory: 1131
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Weight 25.004279mg
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series NR, H Type
Size / Dimension 0.118Lx0.118W 3.00mmx3.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding Shielded
Number of Functions 1
Depth 3mm
Current Rating 900mA
Inductance 4.7μH
Test Frequency 100kHz
DC Resistance (DCR) 204mOhm Max
Max DC Current 900mA
Frequency - Self Resonant 50MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Halogen Free Halogen Free
Current - Saturation 850mA
Dimensions
Height 1mm
Height Seated (Max) 0.039 1.00mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
