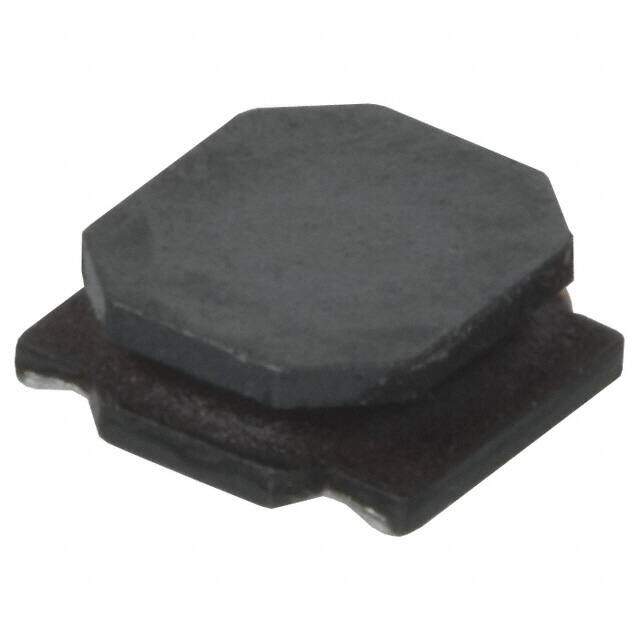

NR3012T470M image
Favorite
NR3012T470M image
Favorite

NR3012T470M

Taiyo Yuden
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description NR Nonstandard 0.118Lx0.118W 3.00mmx3.00mm 47muH
PDF
/
Buying Options
Total Price: USD $0.3
Unit Price: USD $0.2992
≥1 USD $0.2992
≥10 USD $0.24552
≥100 USD $0.226688
≥500 USD $0.20768
≥1000 USD $0.183216
≥3000 USD $0.177549
Inventory: 1093
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.047 1.20mm
Height 1.2mm

Technical

Special Feature DCR IS MEASURED AT 20% TOLERANCE
DC Current 280mA
Case/Size Code 1212
Halogen Free Halogen Free
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Frequency - Self Resonant 17MHz
Max DC Current 250mA
DC Resistance (DCR) 1.74Ohm Max
Test Frequency 100kHz
Inductance 47μH
Military Standard Not
Current Rating 250mA
Construction Chip
Depth 3.1mm
Number of Functions 1
Shielding Shielded
Packing Method TR
Current Rating (Amps) 280mA
HTS Code 8504.50.80.00
Resistance 1.74Ohm
Type Wirewound
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.118Lx0.118W 3.00mmx3.00mm
Series NR
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -25°C~120°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 13 Weeks
