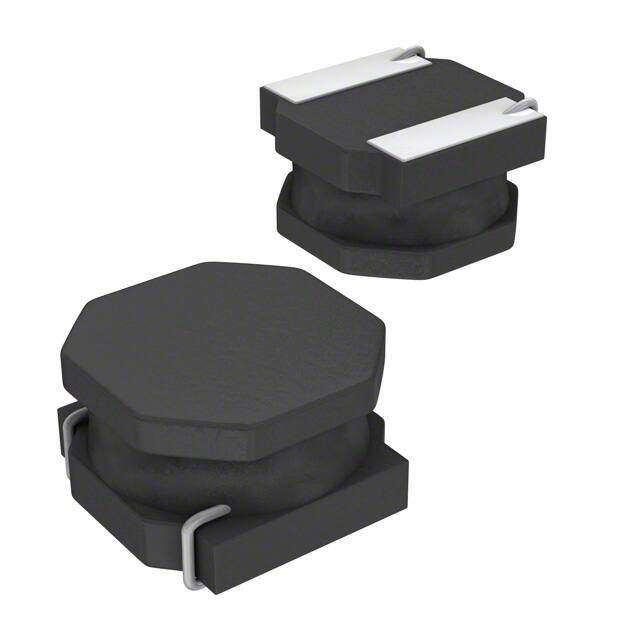

MDKK2020T3R3MMV
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
ROHS3Compliant Wirewound Active ONE SURFACE Fixed Inductor -40C~125C 1MHz 275mOhm Max 3.3muH
PDF
/
Inventory: 3296
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mounting Type Surface Mount
Package / Case Nonstandard
Surface Mount YES
Terminal Shape ONE SURFACE
Material - Core Metal
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Series MCOIL?, MD
Size / Dimension 0.079Lx0.079W 2.00mmx2.00mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Current Rating (Amps) 940mA
Shielding Shielded
Number of Functions 1
Inductance 3.3μH
Test Frequency 1MHz
DC Resistance (DCR) 275mOhm Max
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 1MHz
Current - Saturation 1.3A
Rated Current-Max 0.94A
Dimensions
Height Seated (Max) 0.039 1.00mm
Compliance
RoHS Status ROHS3 Compliant
Ratings AEC-Q200
