CBC2012T2R2MV
RoHS
RoHS compliant
RoHS compliantPackage 0805 (2012 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CB C Type 0805 (2012Metric) 0.079Lx0.049W 2.00mmx1.25mm 2.2muH
PDF
/
Buying Options
Total Price: USD $0.23
Unit Price: USD $0.2288
≥1 USD $0.2288
≥10 USD $0.18568
≥100 USD $0.171776
≥500 USD $0.157344
≥1000 USD $0.138776
≥3000 USD $0.134499
Inventory: 1140
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Terminal Shape WRAPAROUND
Weight 5.499807mg
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Series CB, C Type
Size / Dimension 0.079Lx0.049W 2.00mmx1.25mm
Tolerance ±20%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Shielding Unshielded
Number of Functions 1
Depth 1.25mm
Current Rating 485mA
Case Code (Metric) 2012
Case Code (Imperial) 0805
Inductance 2.2μH
Test Frequency 7.96MHz
DC Resistance (DCR) 429mOhm Max
Max DC Current 530mA
Frequency - Self Resonant 70MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Current - Saturation 530mA
Dimensions
Height 1.25mm
Height Seated (Max) 0.057 1.45mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant

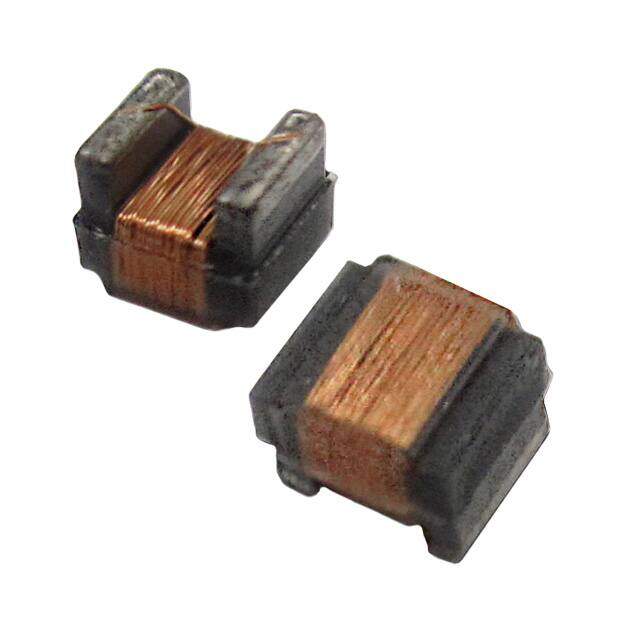

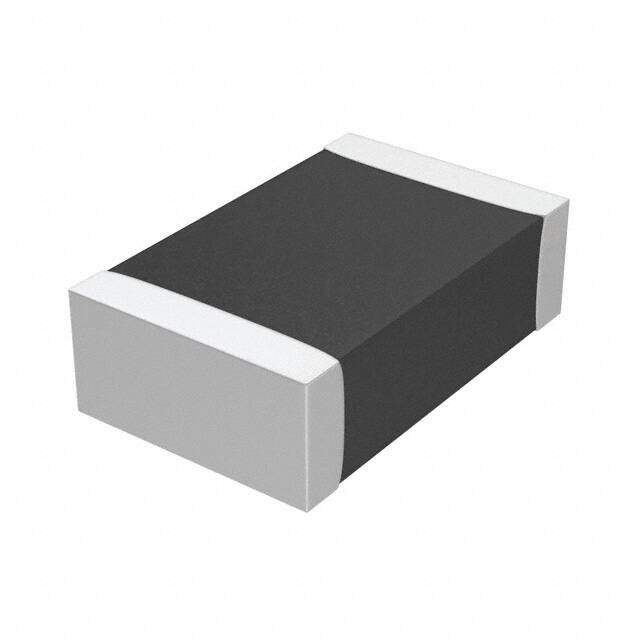

Alternative Model
