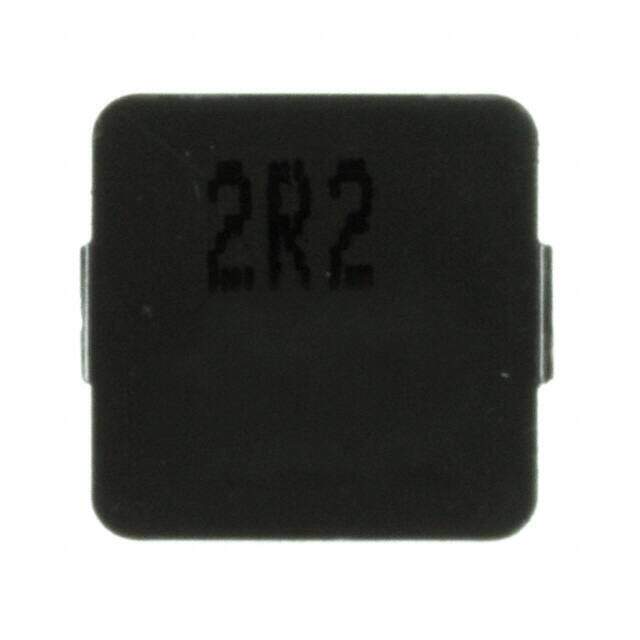

PCMC104T-2R2MN
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PCMC Nonstandard 0.453Lx0.394W 11.50mmx10.00mm 2.2muH
PDF
/
Buying Options
Total Price: USD $1.34
Unit Price: USD $1.34235
≥1 USD $1.34235
≥10 USD $1.102
≥100 USD $1.0678
≥500 USD $1.03265
≥1000 USD $0.99845
Inventory: 151
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE
Technical
Packaging Tape & Reel (TR)
Published 2008
Series PCMC
Size / Dimension 0.453Lx0.394W 11.50mmx10.00mm
Tolerance ±20%
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
Terminal Finish MATTE TIN
Shielding Unshielded
Number of Functions 1
Construction Choke Coil
Current Rating 12A
Inductance 2.2μH
DC Resistance (DCR) 7mOhm Max
Max DC Current 12A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 27A
Case/Size Code 4539
Dimensions
Height 4mm
Height Seated (Max) 0.157 4.00mm
Compliance
RoHS Status ROHS3 Compliant
