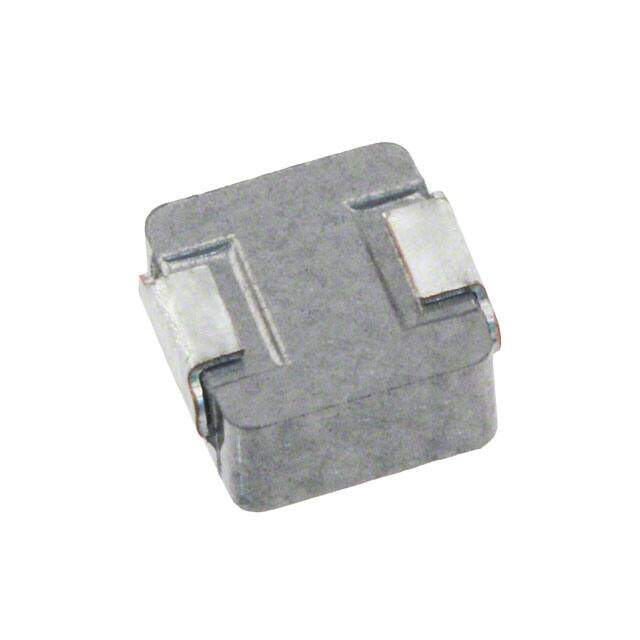

PCMB104T-R56MT image
Favorite
PCMB104T-R56MT image
Favorite

PCMB104T-R56MT

Susumu
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description PCMB Nonstandard 0.433Lx0.394W 11.00mmx10.00mm 560nH
PDF
/
Buying Options
Total Price: USD $1.4
Unit Price: USD $1.3992
≥1 USD $1.3992
≥10 USD $1.1836
≥100 USD $1.076416
≥500 USD $1.011824
≥1000 USD $0.83952
≥3000 USD $0.774963
Inventory: 554
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 14 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE

Technical

Packaging Tape & Reel (TR)
Published 2008
Series PCMB
Size / Dimension 0.433Lx0.394W 11.00mmx10.00mm
Tolerance ±20%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Current Rating 25A
Inductance 560nH
DC Resistance (DCR) 1.8mOhm Max
Max DC Current 25A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 33A

Dimensions

Height 4mm
Height Seated (Max) 0.150 3.80mm

Compliance

RoHS Status ROHS3 Compliant
