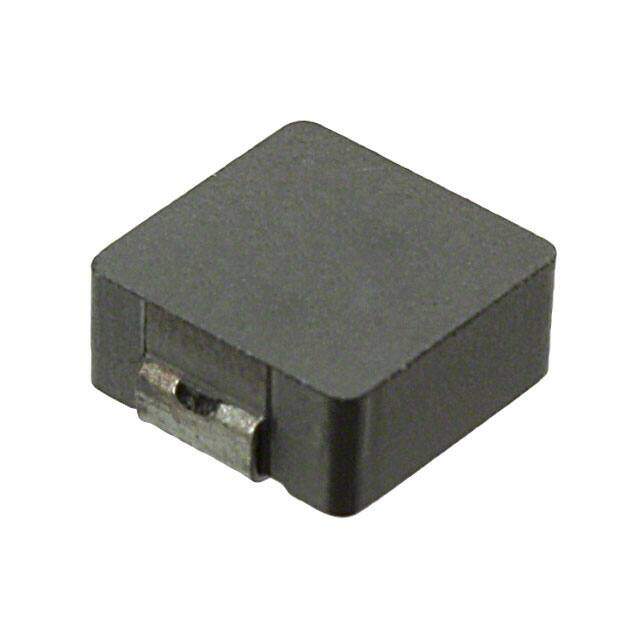

PCMB063T-1R0MS
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
PCMB Nonstandard 0.274Lx0.260W 6.95mmx6.60mm 1muH
PDF
/
Buying Options
Total Price: USD $1.24
Unit Price: USD $1.2408
≥1 USD $1.2408
≥10 USD $1.0472
≥100 USD $0.951808
≥500 USD $0.894608
≥1000 USD $0.742368
≥3000 USD $0.685238
Inventory: 1126
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.110 2.80mm
Height 2.8mm
Technical
Case/Size Code 2627
Current - Saturation 22A
Inductor Type GENERAL PURPOSE INDUCTOR
Inductance Frequency - Test 100kHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 11A
DC Resistance (DCR) 10mOhm Max
Inductance 1μH
Current Rating 11A
Number of Functions 1
Shielding Unshielded
HTS Code 8504.50.80.00
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.274Lx0.260W 6.95mmx6.60mm
Series PCMB
Published 2008
Packaging Cut Tape (CT)
Physical
Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
