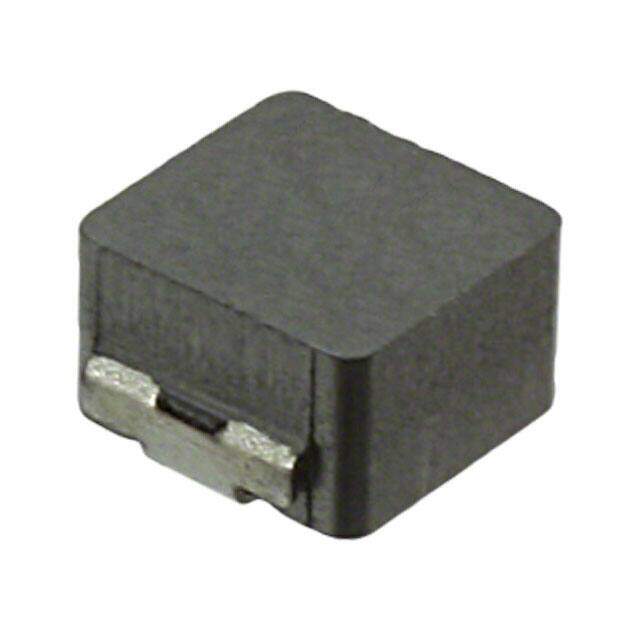

PCMB053T-1R0MS image
Favorite
PCMB053T-1R0MS image
Favorite

PCMB053T-1R0MS

Susumu
RoHS
RoHS RoHS compliant
Package 1919 (4848 Metric)
Category Inductors, Coils, Chokes / Fixed Inductors
Description PCMB 1919 (4848Metric) 0.191Lx0.185W 4.85mmx4.70mm 1muH
PDF
/
Buying Options
Total Price: USD $0.92
Unit Price: USD $0.924
≥1 USD $0.924
≥10 USD $0.78496
≥100 USD $0.713856
≥500 USD $0.670912
≥1000 USD $0.556776
≥3000 USD $0.51392
Inventory: 5195
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant

Dimensions

Height Seated (Max) 0.110 2.80mm
Height 2.8mm

Technical

Current - Saturation 11A
Inductor Type GENERAL PURPOSE INDUCTOR
Inductance Frequency - Test 100kHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 7A
DC Resistance (DCR) 14mOhm Max
Inductance 1μH
Case Code (Imperial) 1919
Case Code (Metric) 4848
Current Rating 7A
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Tolerance ±20%
Size / Dimension 0.191Lx0.185W 4.85mmx4.70mm
Series PCMB
Published 2012
Packaging Cut Tape (CT)

Physical

Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WRAPAROUND
Package / Case 1919 (4848 Metric)
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 14 Weeks
