RCH895NP-182K
RoHS
RoHS compliant
RoHS compliantPackage Radial, Vertical Cylinder (Open)
Category Inductors, Coils, Chokes / Fixed Inductors
Description

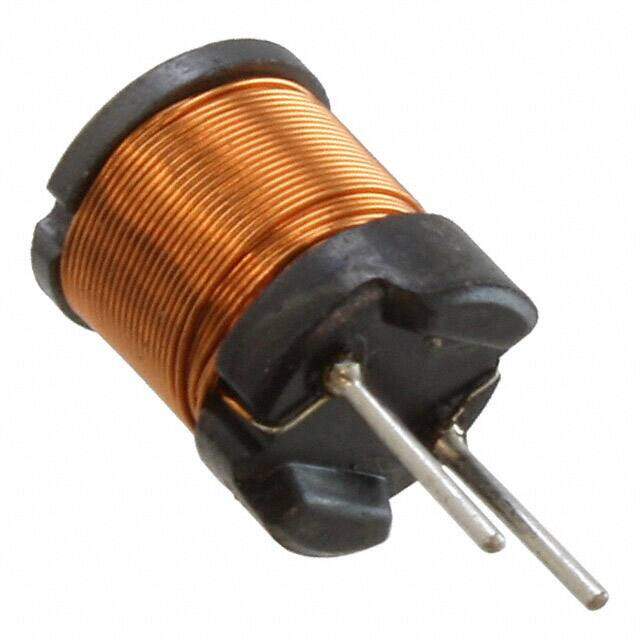

RCH-895 Radial Vertical Cylinder (Open) 0.307Dia 7.80mm 1.8mH
PDF
/
Inventory: 936
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial, Vertical Cylinder (Open)
Weight 1.799996g
Material - Core Ferrite
Shape/Size Description CYLINDRICAL PACKAGE
Technical
Operating Temperature -40°C~100°C
Packaging Tape & Reel (TR)
Published 2012
Series RCH-895
Size / Dimension 0.307Dia 7.80mm
Lead/Base Style Radial
Max DC Current 210mA
DC Resistance (DCR) 3.21Ohm Max
Test Frequency 1kHz
Inductance 1.8mH
Lead Diameter 0.7 mm
Current Rating 170mA
Reach Compliance Code unknown
Number of Functions 1
Shielding NO
Packing Method Box
HTS Code 8504.50.80.00
Type Wirewound
ECCN Code EAR99
Termination Through Hole
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±10%
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.374 9.50mm
Height 9.5mm
