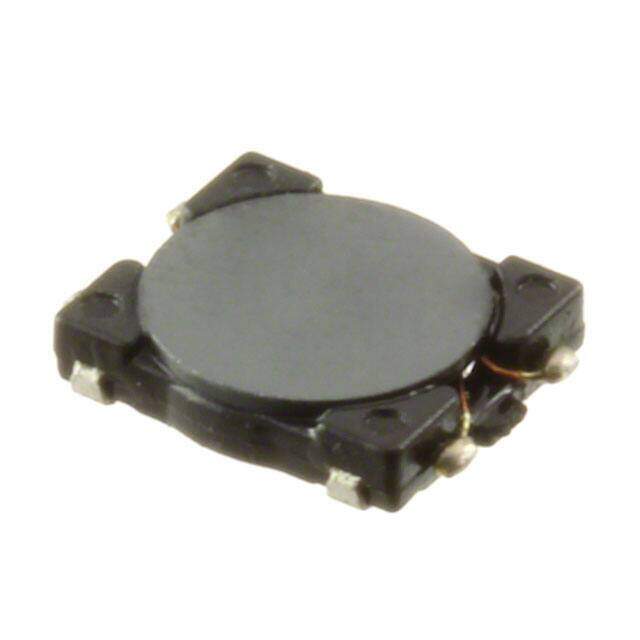

CMD5D13NP-4R7MC image
Favorite
CMD5D13NP-4R7MC image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description CMD Nonstandard 0.236Lx0.205W 6.00mmx5.20mm 4.7muH
PDF
/
Inventory: 8036
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.059 1.50mm
Height 1.5mm

Technical

Current - Saturation 1.5A
Inductor Type GENERAL PURPOSE INDUCTOR
Inductance Frequency - Test 100kHz
Terminal Placement DUAL IN-LINE
Inductor Application POWER INDUCTOR
Max DC Current 1.2A
DC Resistance (DCR) 106mOhm Max
Test Frequency 0.1MHz
Inductance 4.7μH
Current Rating 1.2A
Depth 5.8mm
Number of Functions 2
Shielding NO
HTS Code 8504.50.80.00
ECCN Code EAR99
Number of Terminations 4
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.236Lx0.205W 6.00mmx5.20mm
Series CMD
Published 2010
Packaging Cut Tape (CT)

Physical

Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 12 Weeks
