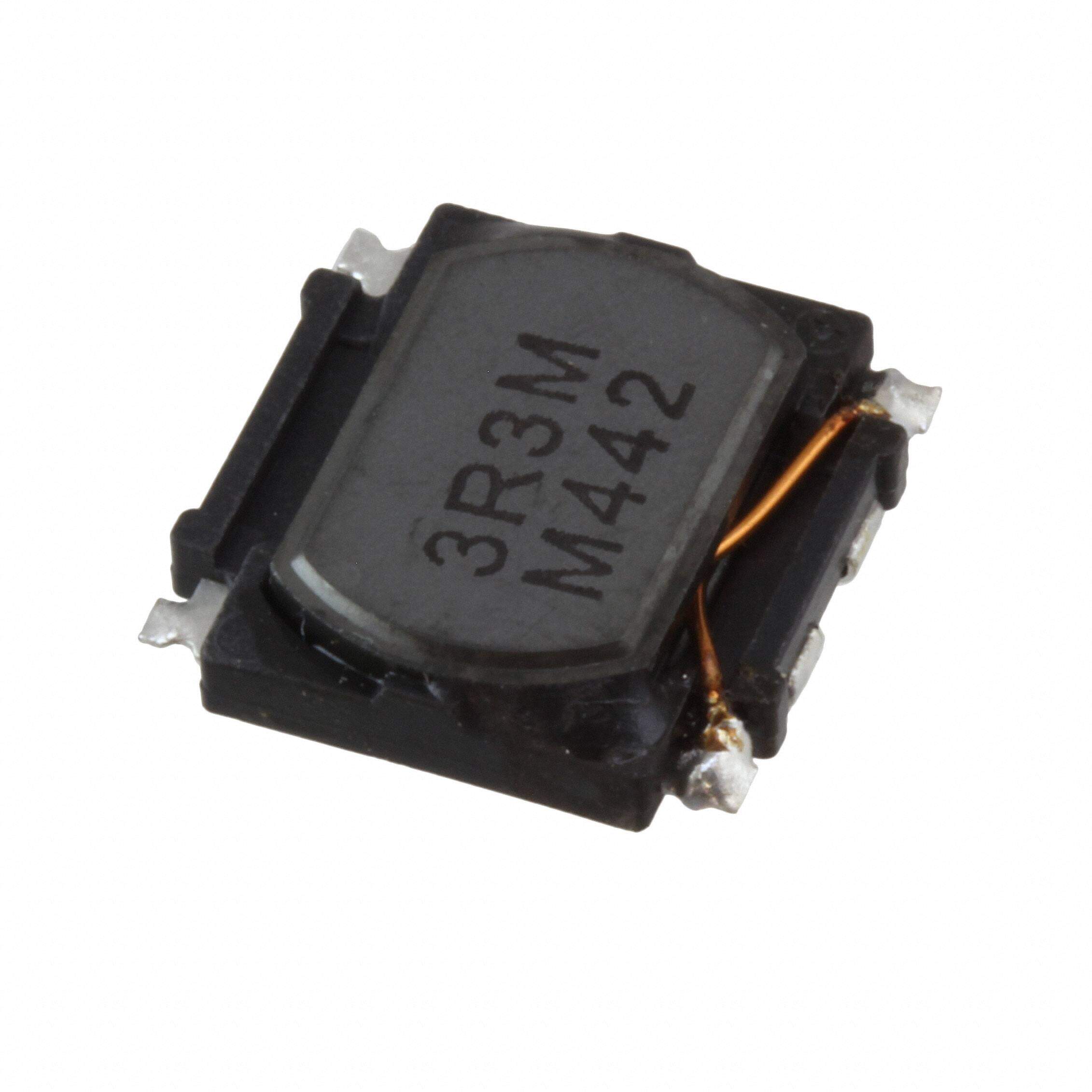

CEI122NP-3R3MC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CEI series 3.3UH 20% 100KHz 5.2A Power Shielded Wirewound Inductor
PDF
/
Inventory: 7196
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Packaging Tape & Reel (TR)
Published 2006
Series CEI122
Size / Dimension 0.492Lx0.492W 12.50mmx12.50mm
Tolerance ±20%
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
HTS Code 8504.50.80.00
Shielding Unshielded
Depth 12.8mm
Current Rating 5.2A
Inductance 3.3μH
Test Frequency 100kHz
DC Resistance (DCR) 17.8mOhm Max
Max DC Current 5.2A
Current - Saturation 6.2A
Dimensions
Height 3mm
Height Seated (Max) 0.118 3.00mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
