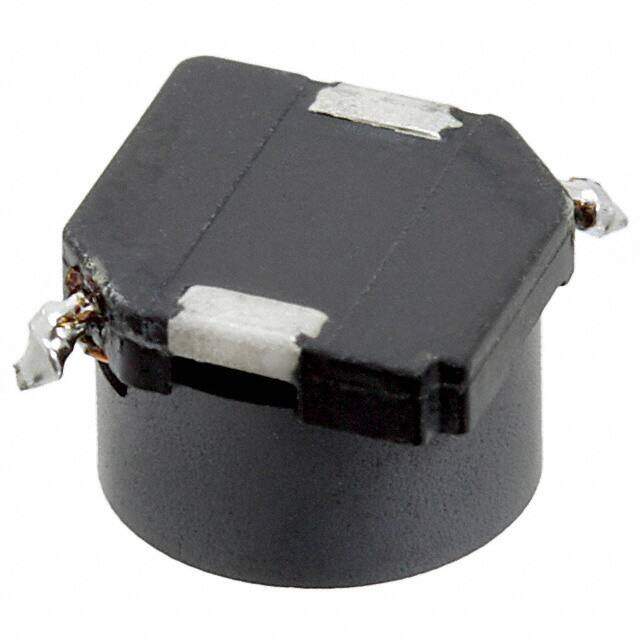

CDRR75NP-681MC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDRR Nonstandard 0.272Lx0.272W 6.90mmx6.90mm 680muH
PDF
/
Buying Options
Total Price: USD $1.15
Unit Price: USD $1.149732
≥1 USD $1.149732
≥10 USD $1.08466
≥100 USD $1.023263
≥500 USD $0.965332
≥1000 USD $0.910697
Inventory: 1436
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Weight 599.989307mg
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Cut Tape (CT)
Published 2012
Series CDRR
Size / Dimension 0.272Lx0.272W 6.90mmx6.90mm
Tolerance ±20%
Pbfree Code yes
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
HTS Code 8504.50.80.00
Packing Method TR, 13 Inch
Shielding YES
Number of Functions 1
Reach Compliance Code unknown
Current Rating 310mA
Reference Standard AEC-Q200
Inductance 680μH
Test Frequency 100kHz
DC Resistance (DCR) 1.866Ohm Max
Max DC Current 310mA
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 160mA
Case/Size Code 2828
Dimensions
Height 4.8mm
Height Seated (Max) 0.189 4.80mm
Compliance
RoHS Status ROHS3 Compliant
