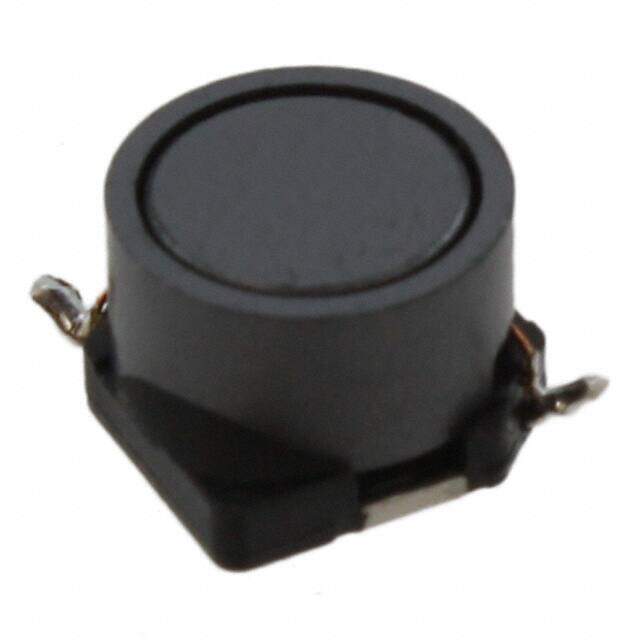

CDRR75NP-471MC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDRR Nonstandard 0.272Lx0.272W 6.90mmx6.90mm 470muH
PDF
/
Inventory: 4435
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.189 4.80mm
Height 4.8mm
Technical
Case/Size Code 2828
Current - Saturation 200mA
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 380mA
DC Resistance (DCR) 1.416Ohm Max
Test Frequency 100kHz
Inductance 470μH
Reference Standard AEC-Q200
Current Rating 380mA
Reach Compliance Code unknown
Number of Functions 1
Shielding YES
Packing Method TR, 13 Inch
HTS Code 8504.50.80.00
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.272Lx0.272W 6.90mmx6.90mm
Series CDRR
Published 2012
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Weight 599.989307mg
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
