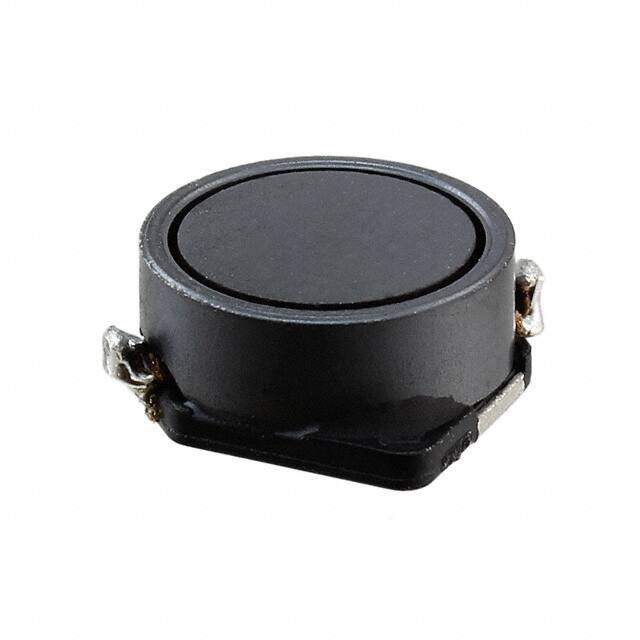

CDRR105NP-331MC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDRR105 Nonstandard 0.409Lx0.409W 10.40mmx10.40mm 330muH
PDF
/
Buying Options
Total Price: USD $0.6
Unit Price: USD $0.601749
≥1 USD $0.601749
≥10 USD $0.533725
≥100 USD $0.499713
≥500 USD $0.465701
Inventory: 453
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~125°C
Packaging Cut Tape (CT)
Published 2011
Series CDRR105
Size / Dimension 0.409Lx0.409W 10.40mmx10.40mm
Tolerance ±20%
Pbfree Code yes
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
HTS Code 8504.50.80.00
Packing Method TR, 13 Inch
Shielding YES
Number of Functions 1
Reach Compliance Code unknown
Current Rating 610mA
Inductance 330μH
Test Frequency 1kHz
DC Resistance (DCR) 848mOhm Max
Max DC Current 610mA
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 440mA
Case/Size Code 4141
Dimensions
Height 4.8mm
Height Seated (Max) 0.189 4.80mm
Compliance
RoHS Status ROHS3 Compliant
