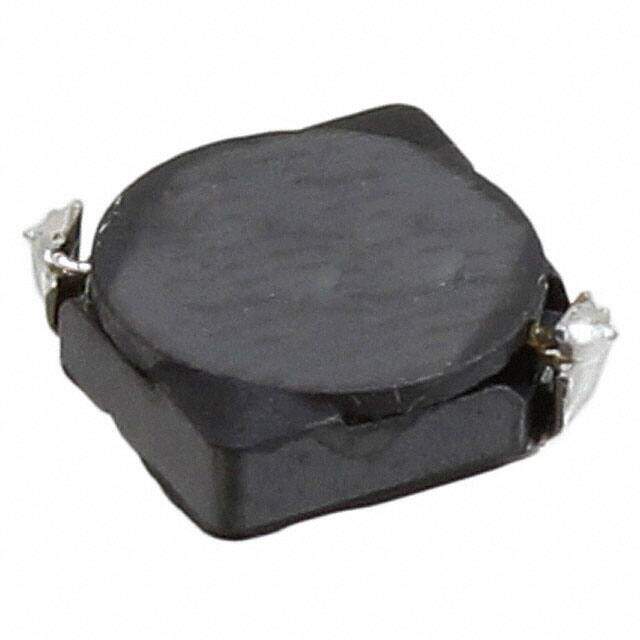

CDRH5D18NP-820NC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDRH5D18 Nonstandard 0.224Lx0.224W 5.70mmx5.70mm 82muH
PDF
/
Buying Options
Total Price: USD $0.72
Unit Price: USD $0.7216
≥1 USD $0.7216
≥10 USD $0.61864
≥100 USD $0.56672
≥500 USD $0.515328
≥1000 USD $0.458568
≥3000 USD $0.432854
Inventory: 2295
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 98 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Weight 219.992299mg
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~100°C
Packaging Cut Tape (CT)
Published 2012
Series CDRH5D18
Size / Dimension 0.224Lx0.224W 5.70mmx5.70mm
Tolerance ±30%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
HTS Code 8504.50.80.00
Packing Method TR, 13 Inch
Shielding NO
Number of Functions 1
Depth 6mm
Current Rating 410mA
Military Standard Not
Inductance 82μH
Test Frequency 10kHz
DC Resistance (DCR) 978mOhm Max
Max DC Current 410mA
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Case/Size Code 2222
DC Current 410mA
Dimensions
Height 2mm
Height Seated (Max) 0.079 2.00mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
