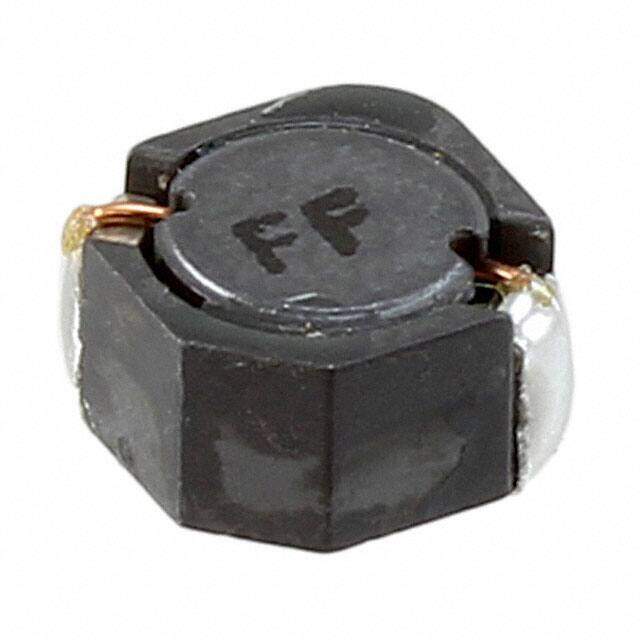

CDRH4D28CLDNP-100PC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDRH4D28C/LD Nonstandard 0.193Lx0.193W 4.90mmx4.90mm 10muH
PDF
/
Buying Options
Total Price: USD $0.86
Unit Price: USD $0.8624
≥1 USD $0.8624
≥10 USD $0.73304
≥100 USD $0.666336
≥500 USD $0.626208
≥1000 USD $0.51964
≥3000 USD $0.47967
Inventory: 5960
Minimum: 1
-
+
Technical Details
Technical
Packaging Cut Tape (CT)
Published 2008
Series CDRH4D28C/LD
Size / Dimension 0.193Lx0.193W 4.90mmx4.90mm
Tolerance ±25%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
HTS Code 8504.50.80.00
Packing Method TR
Shielding YES
Number of Functions 1
Depth 5.1mm
Current Rating 1.8A
Inductance 10μH
Test Frequency 100kHz
DC Resistance (DCR) 67.5mOhm Max
Max DC Current 1.8A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 900mA
Case/Size Code 2020
Operating Temperature -40°C~105°C
Dimensions
Height 3mm
Height Seated (Max) 0.118 3.00mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 10 Weeks
