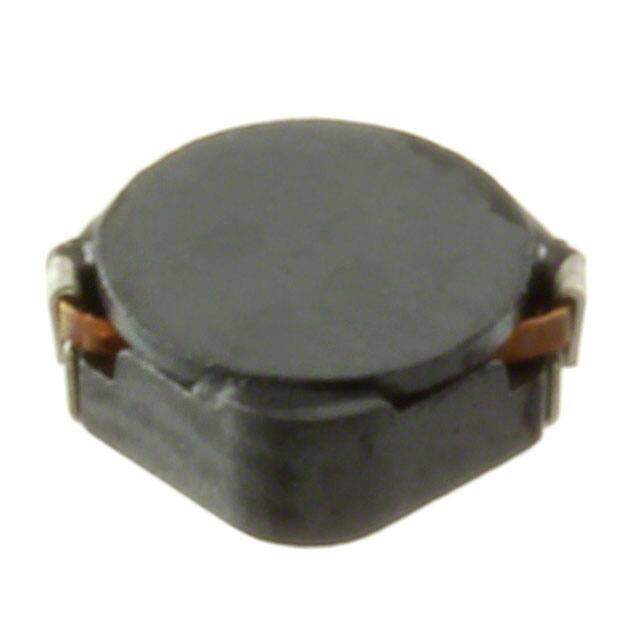

CDRH4D16FB/NP-4R7NC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDRH4D16FB Nonstandard 0.157Lx0.157W 4.00mmx4.00mm 4.7muH
PDF
/
Buying Options
Total Price: USD $0.86
Unit Price: USD $0.8624
≥1 USD $0.8624
≥10 USD $0.72776
≥100 USD $0.66176
≥500 USD $0.62216
≥1000 USD $0.516296
≥3000 USD $0.476573
Inventory: 208
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Weight 99.988768mg
Shape/Size Description RECTANGULAR PACKAGE
Core Material Ferrite
Technical
Operating Temperature -40°C~105°C
Packaging Cut Tape (CT)
Published 2010
Series CDRH4D16FB
Size / Dimension 0.157Lx0.157W 4.00mmx4.00mm
Tolerance ±25%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
HTS Code 8504.50.80.00
Packing Method TR
Shielding NO
Number of Functions 1
Depth 4.15mm
Current Rating 2A
Inductance 4.7μH
Test Frequency 100kHz
DC Resistance (DCR) 58.5mOhm Max
Max DC Current 2A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 1.2A
Case/Size Code 1616
Dimensions
Height 1.8mm
Height Seated (Max) 0.071 1.80mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
