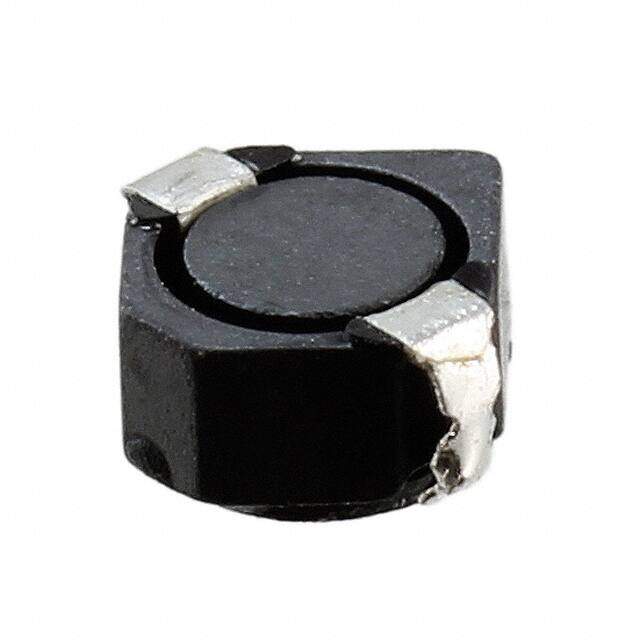

CDRH3D23NP-4R7PC image
Favorite
CDRH3D23NP-4R7PC image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description CDRH3D23 Nonstandard 0.150Lx0.150W 3.80mmx3.80mm 4.7muH
PDF
/
Buying Options
Total Price: USD $0.58
Unit Price: USD $0.5808
≥1 USD $0.5808
≥10 USD $0.4884
≥100 USD $0.44352
≥500 USD $0.416944
≥1000 USD $0.346016
≥3000 USD $0.319405
Inventory: 224720
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 28 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Weight 112.008966mg
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE

Technical

Operating Temperature -40°C~105°C
Packaging Cut Tape (CT)
Published 2014
Series CDRH3D23
Size / Dimension 0.150Lx0.150W 3.80mmx3.80mm
Tolerance ±25%
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
Terminal Finish Tin (Sn)
HTS Code 8504.50.80.00
Shielding YES
Number of Functions 1
Depth 3.92mm
Current Rating 1.9A
Military Standard Not
Inductance 4.7μH
Test Frequency 100kHz
DC Resistance (DCR) 68.8mOhm Max
Max DC Current 1.9A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 1.3A
Case/Size Code 1515
DC Current 1.9A

Dimensions

Height 2.5mm
Height Seated (Max) 0.098 2.50mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
