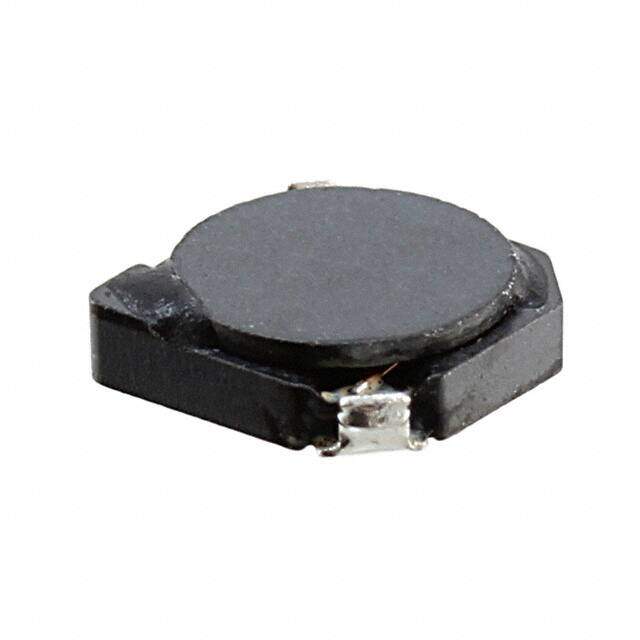

CDRH3D11NP-220NC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDRH3D11 Nonstandard 0.150Lx0.150W 3.80mmx3.80mm 22muH
PDF
/
Buying Options
Total Price: USD $0.52
Unit Price: USD $0.522146
≥1 USD $0.522146
≥10 USD $0.492595
≥100 USD $0.46471
≥500 USD $0.438406
≥1000 USD $0.413583
Inventory: 1154
Minimum: 1
-
+
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Shape/Size Description RECTANGULAR PACKAGE
Core Material Ferrite
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2006
Series CDRH3D11
Size / Dimension 0.150Lx0.150W 3.80mmx3.80mm
Tolerance ±30%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
HTS Code 8504.50.80.00
Packing Method Box
Shielding YES
Number of Functions 1
Depth 4mm
Current Rating 530mA
Inductance 22μH
Test Frequency 100kHz
DC Resistance (DCR) 540mOhm Max
Max DC Current 530mA
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 190mA
Case/Size Code 1515
Dimensions
Height 1.2mm
Height Seated (Max) 0.047 1.20mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
