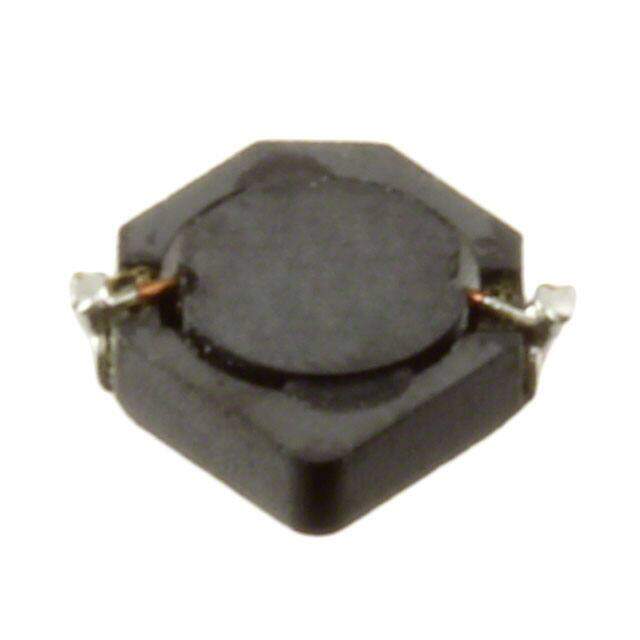

CDRH2D09NP-2R2MC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDRH2D09 Nonstandard 0.118Lx0.118W 3.00mmx3.00mm 2.2muH
PDF
/
Buying Options
Total Price: USD $10.69
Unit Price: USD $10.68845
≥1 USD $10.68845
≥10 USD $8.76945
≥100 USD $8.49585
≥500 USD $8.2213
≥1000 USD $7.9477
Inventory: 11105
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.039 1.00mm
Height 1mm
Technical
Case/Size Code 1212
Current - Saturation 600mA
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 600mA
DC Resistance (DCR) 120mOhm
Test Frequency 100kHz
Inductance 2.2μH
Current Rating 1.05A
Depth 3.2mm
Number of Functions 1
Shielding YES
HTS Code 8504.50.80.00
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±25%
Size / Dimension 0.118Lx0.118W 3.00mmx3.00mm
Series CDRH2D09
Published 2007
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
