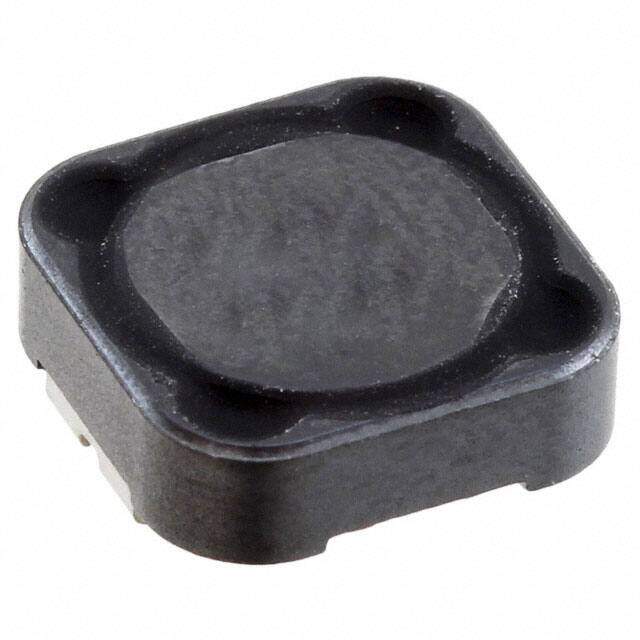

CDRH124NP-820MC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDRH124 Nonstandard 0.472Lx0.472W 12.00mmx12.00mm 82muH
PDF
/
Inventory: 2340
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.177 4.50mm
Height 4.5mm
Technical
Case/Size Code 4747
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 1.3A
DC Resistance (DCR) 260mOhm Max
Test Frequency 100kHz
Inductance 82μH
Reference Standard AEC-Q200
Current Rating 1.3A
Depth 12.3mm
Number of Functions 1
Shielding YES
Packing Method TR
HTS Code 8504.50.80.00
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.472Lx0.472W 12.00mmx12.00mm
Series CDRH124
Published 2012
Packaging Tape & Reel (TR)
Operating Temperature -40°C~100°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Weight 2.299997g
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
