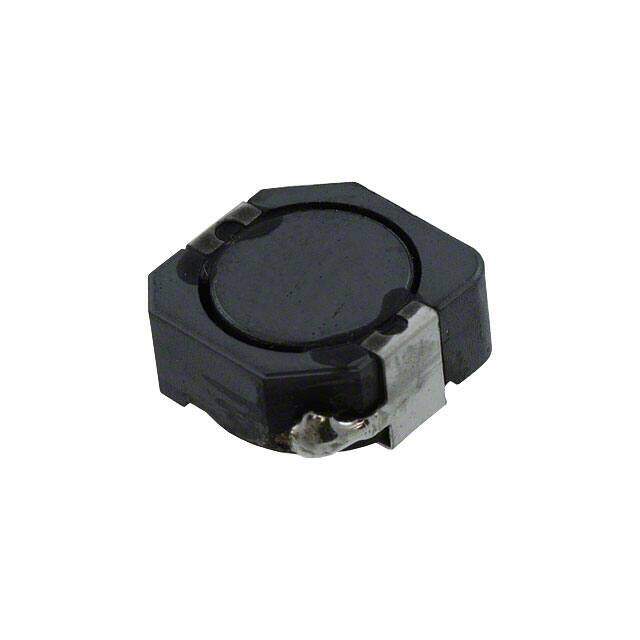

CDRH105RNP-2R2NC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDRH105R Nonstandard 0.402Lx0.394W 10.20mmx10.00mm 2.2muH
PDF
/
Buying Options
Total Price: USD $7.75
Unit Price: USD $7.7463
≥1 USD $7.7463
≥10 USD $6.35645
≥100 USD $6.1579
≥500 USD $5.95935
≥1000 USD $5.7608
Inventory: 1078
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.205 5.20mm
Height 5.1mm
Technical
Case/Size Code 4039
Current - Saturation 9.25A
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 7.5A
DC Resistance (DCR) 7.2mOhm Max
Test Frequency 100kHz
Inductance 2.2μH
Current Rating 7.5A
Depth 10.3mm
Number of Functions 1
Shielding YES
Packing Method TR
HTS Code 8504.50.80.00
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Pbfree Code yes
Tolerance ±30%
Size / Dimension 0.402Lx0.394W 10.20mmx10.00mm
Series CDRH105R
Published 2009
Packaging Cut Tape (CT)
Operating Temperature -40°C~100°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 19 Weeks
