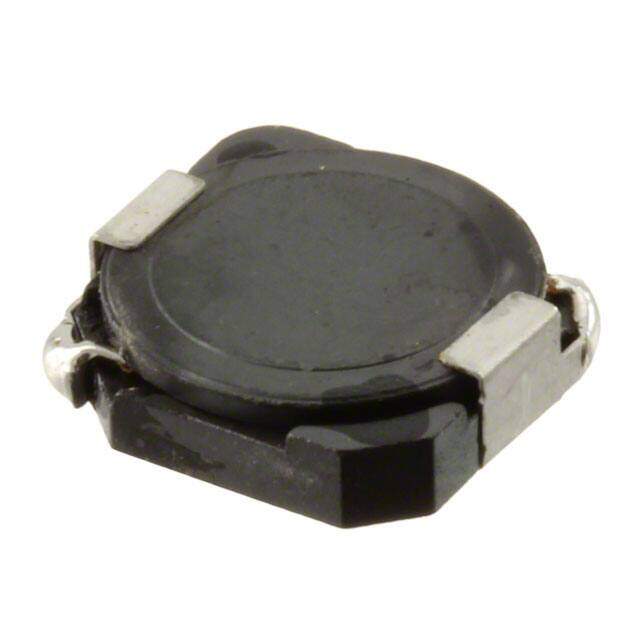

CDRH103RNP-151NC-B
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDRH103R Nonstandard 0.402Lx0.394W 10.20mmx10.00mm 150muH
PDF
/
Inventory: 3806
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~100°C
Packaging Tape & Reel (TR)
Published 2009
Series CDRH103R
Size / Dimension 0.402Lx0.394W 10.20mmx10.00mm
Tolerance ±30%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
HTS Code 8504.50.80.00
Packing Method TR
Shielding YES
Number of Functions 1
Depth 10.3mm
Current Rating 510mA
Inductance 150μH
Test Frequency 100kHz
DC Resistance (DCR) 871mOhm Max
Max DC Current 510mA
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 840mA
Case/Size Code 4039
Dimensions
Height 3.1mm
Height Seated (Max) 0.122 3.10mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
