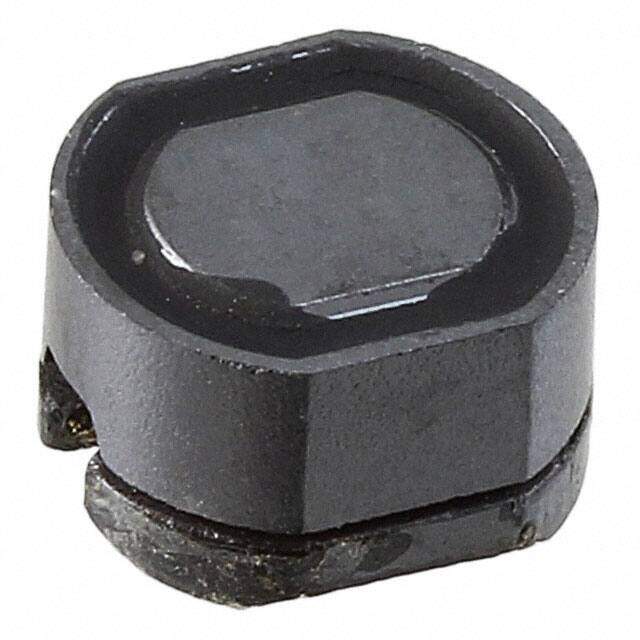

CDR74BNP-820LC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDR74B Nonstandard 0.307Lx0.276W 7.80mmx7.00mm 82muH
PDF
/
Inventory: 9012
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -25°C~80°C
Packaging Tape & Reel (TR)
Published 2010
Series CDR74B
Size / Dimension 0.307Lx0.276W 7.80mmx7.00mm
Tolerance ±15%
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
HTS Code 8504.50.80.00
Shielding YES
Number of Functions 1
Depth 7.35mm
Current Rating 620mA
Inductance 82μH
Test Frequency 2.52MHz
DC Resistance (DCR) 430mOhm Max
Max DC Current 620mA
Frequency - Self Resonant 9.3MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Case/Size Code 3229
Dimensions
Height 4.9mm
Height Seated (Max) 0.193 4.90mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
