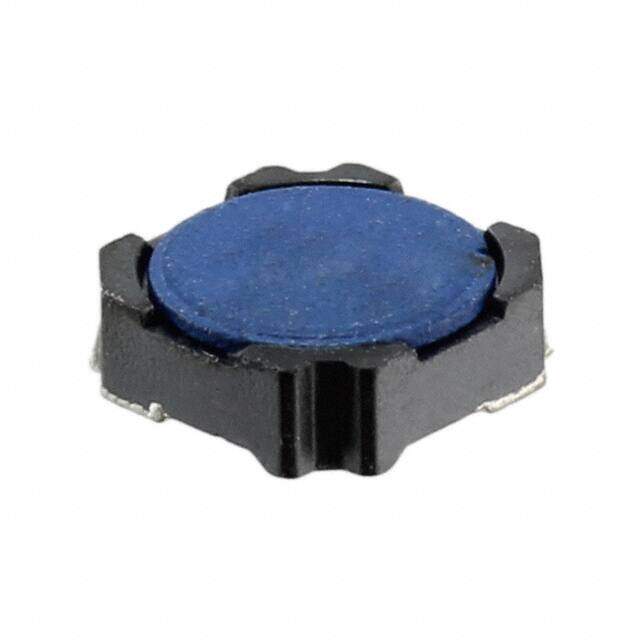

CDR6D23MNNP-270NC image
Favorite
CDR6D23MNNP-270NC image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description CDR6D23MN Nonstandard 0.256Lx0.256W 6.50mmx6.50mm 27muH
PDF
/
Inventory: 9530
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.098 2.50mm
Height 2.5mm

Technical

Case/Size Code 2626
Current - Saturation 1.05A
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 750mA
DC Resistance (DCR) 255mOhm Max
Test Frequency 100kHz
Inductance 27μH
Current Rating 750mA
Depth 6.8mm
Number of Functions 1
Shielding YES
Packing Method TR
HTS Code 8504.50.80.00
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±25%
Size / Dimension 0.256Lx0.256W 6.50mmx6.50mm
Series CDR6D23MN
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C

Physical

Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 12 Weeks
