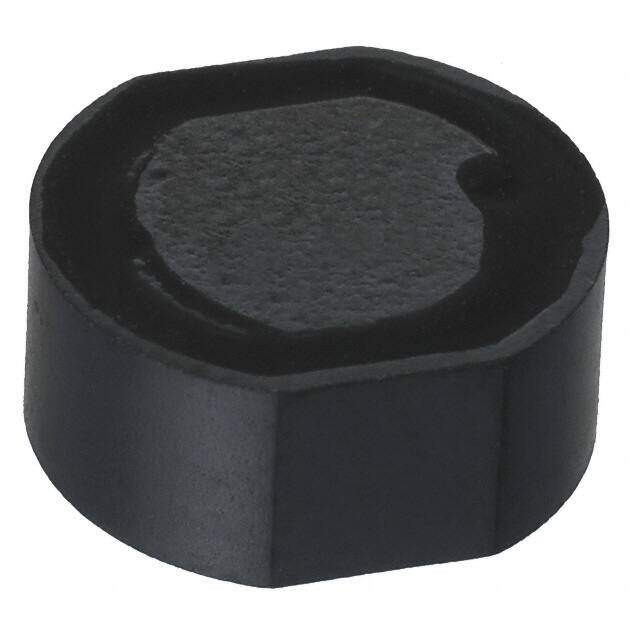

CDR105NP-101MC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDR105 Nonstandard 0.394Lx0.362W 10.00mmx9.20mm 100muH
PDF
/
Inventory: 1109
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~100°C
Packaging Tape & Reel (TR)
Published 2010
Series CDR105
Size / Dimension 0.394Lx0.362W 10.00mmx9.20mm
Tolerance -15% +20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
HTS Code 8504.50.80.00
Shielding YES
Number of Functions 1
Depth 9.6mm
Current Rating 800mA
Inductance 100μH
Test Frequency 1kHz
DC Resistance (DCR) 350mOhm Max
Max DC Current 800mA
Frequency - Self Resonant 7MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Case/Size Code 3936
Dimensions
Diameter 10mm
Height 5.5mm
Height Seated (Max) 0.217 5.50mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
