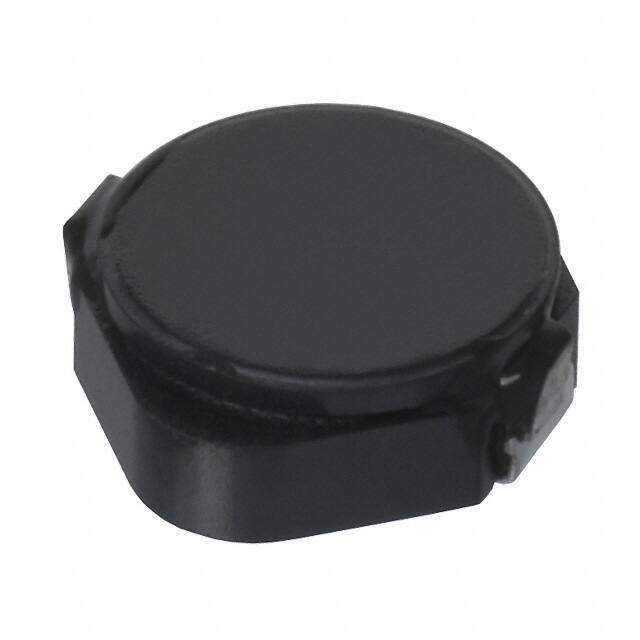

CDPH4D19FNP-3R3MC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDPH4D19F Nonstandard 0.193Lx0.193W 4.90mmx4.90mm 3.3muH
PDF
/
Buying Options
Total Price: USD $0.89
Unit Price: USD $0.8888
≥1 USD $0.8888
≥10 USD $0.75416
≥100 USD $0.685696
≥500 USD $0.644512
≥1000 USD $0.534776
≥3000 USD $0.493645
Inventory: 1238
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Height Seated (Max) 0.079 2.00mm
Height 2mm
Technical
DC Current 3.8A
Case/Size Code 1919
Current - Saturation 1.5A
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 3.8A
DC Resistance (DCR) 33mOhm Max
Test Frequency 100kHz
Inductance 3.3μH
Case Code (Imperial) 2020
Military Standard Not
Current Rating 3.8A
Depth 5.2mm
Number of Functions 1
Shielding NO
Packing Method TR, 7 Inch
HTS Code 8504.50.80.00
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.193Lx0.193W 4.90mmx4.90mm
Series CDPH4D19F
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -40°C~105°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 20 Weeks
