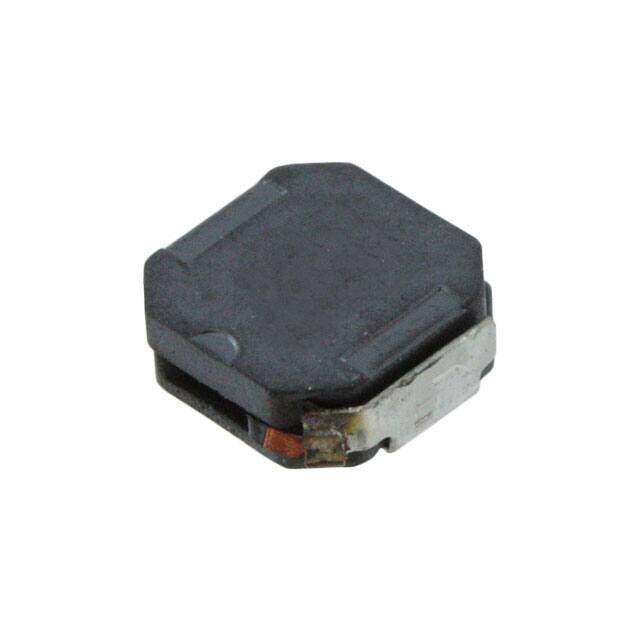

CDPH45D16FHF-100MC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDPH Nonstandard 0.185Lx0.177W 4.70mmx4.50mm 10muH
PDF
/
Buying Options
Total Price: USD $1.12
Unit Price: USD $1.118251
≥1 USD $1.118251
≥10 USD $1.054957
≥100 USD $0.995245
≥500 USD $0.938908
≥1000 USD $0.885764
Inventory: 1184
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~105°C
Packaging Cut Tape (CT)
Published 2012
Series CDPH
Size / Dimension 0.185Lx0.177W 4.70mmx4.50mm
Tolerance ±20%
Pbfree Code yes
Part Status Discontinued
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
HTS Code 8504.50.80.00
Shielding YES
Number of Functions 1
Reach Compliance Code unknown
Current Rating 1.45A
Inductance 10μH
Test Frequency 100kHz
DC Resistance (DCR) 161mOhm Max
Max DC Current 1.45A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Current - Saturation 1.3A
Case/Size Code 1918
Dimensions
Height 1.4mm
Height Seated (Max) 0.055 1.40mm
Compliance
RoHS Status ROHS3 Compliant
