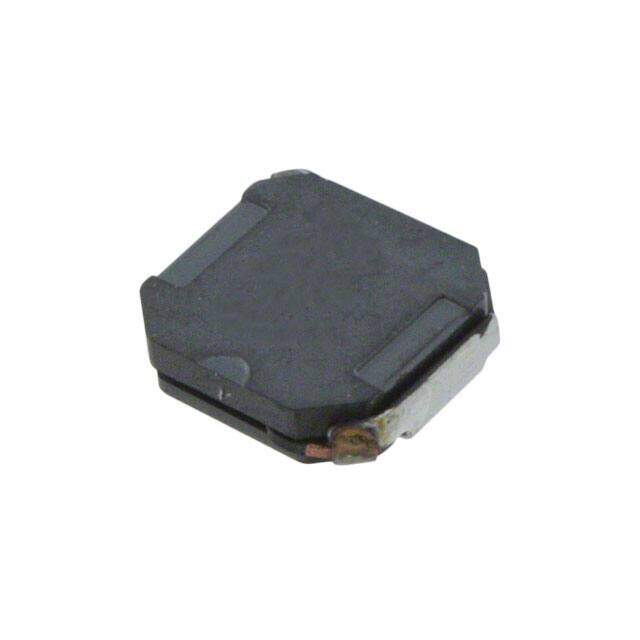

CDPH45D13FHF-3R3MC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDPH Nonstandard 0.185Lx0.177W 4.70mmx4.50mm 3.3muH
PDF
/
Inventory: 3436
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Material - Core Ferrite
Technical
Operating Temperature -40°C~105°C
Packaging Cut Tape (CT)
Published 2012
Series CDPH
Size / Dimension 0.185Lx0.177W 4.70mmx4.50mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination SMD/SMT
ECCN Code EAR99
HTS Code 8504.50.80.00
Shielding Shielded
Depth 4.7mm
Reach Compliance Code unknown
Current Rating 1.8A
Military Standard Not
Inductance 3.3μH
Test Frequency 100kHz
DC Resistance (DCR) 96mOhm Max
Max DC Current 1.8A
Current - Saturation 1.76A
DC Current 1.8A
Dimensions
Height 1.4mm
Height Seated (Max) 0.055 1.40mm
Compliance
RoHS Status ROHS3 Compliant
