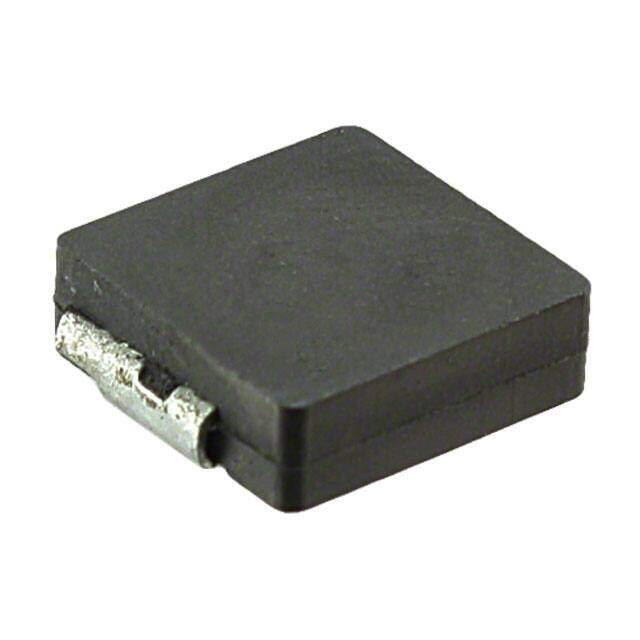

CDMC8D28NP-3R9MC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDMC8D28 Nonstandard 0.374Lx0.335W 9.50mmx8.50mm 3.9muH
PDF
/
Inventory: 3617
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.118 3.00mm
Height 3mm
Technical
Case/Size Code 3734
Current - Saturation 6.4A
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 7.1A
DC Resistance (DCR) 24.1mOhm Max
Test Frequency 1MHz
Inductance 3.9μH
Current Rating 7.1A
Reach Compliance Code unknown
Depth 8.7mm
Number of Functions 1
Shielding YES
Packing Method TR
HTS Code 8504.50.80.00
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.374Lx0.335W 9.50mmx8.50mm
Series CDMC8D28
Published 2011
Packaging Cut Tape (CT)
Operating Temperature -40°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Metal Composite
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 24 Weeks
