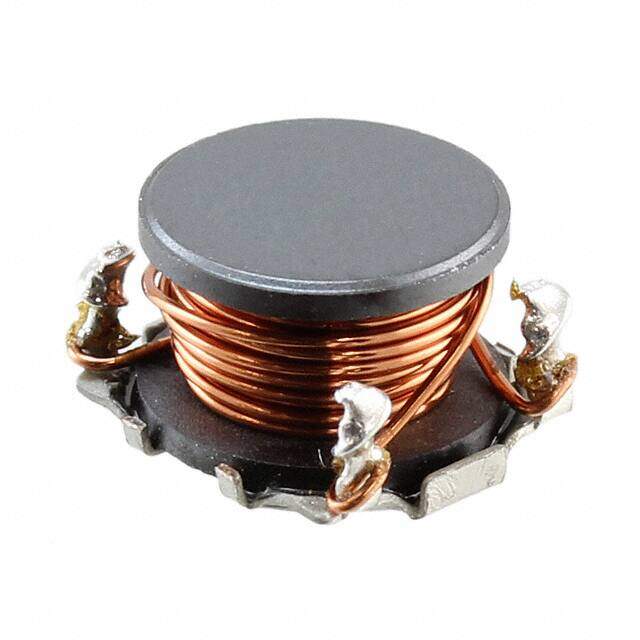

CDH74NP-470KC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CDH74 Nonstandard 0.315Lx0.287W 8.00mmx7.30mm 47muH
PDF
/
Buying Options
Total Price: USD $1.34
Unit Price: USD $1.34235
≥1 USD $1.34235
≥10 USD $1.102
≥100 USD $1.0678
≥500 USD $1.03265
≥1000 USD $0.99845
Inventory: 1161
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape WRAPAROUND
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~100°C
Packaging Cut Tape (CT)
Published 2006
Series CDH74
Size / Dimension 0.315Lx0.287W 8.00mmx7.30mm
Tolerance ±10%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Packing Method TR
Shielding NO
Number of Functions 1
Depth 7.3mm
Current Rating 1.2A
Inductance 47μH
Test Frequency 1kHz
DC Resistance (DCR) 230mOhm Max
Max DC Current 1.2A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Case/Size Code 3229
Dimensions
Height 5.2mm
Height Seated (Max) 0.205 5.20mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
Lead Free Lead Free
