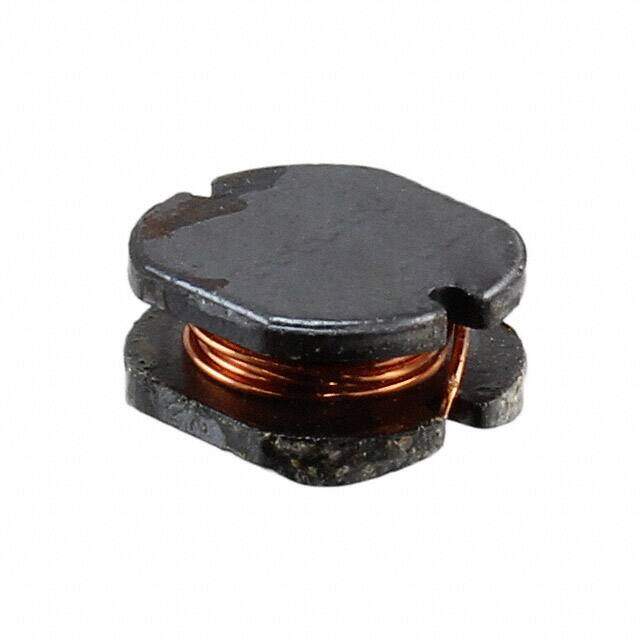

CD73NP-150MC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
CD73 Nonstandard 0.307Lx0.276W 7.80mmx7.00mm 15muH
PDF
/
Inventory: 7384
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Material - Core Ferrite
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -30°C~100°C
Packaging Tape & Reel (TR)
Published 2006
Series CD73
Size / Dimension 0.307Lx0.276W 7.80mmx7.00mm
Tolerance ±20%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Depth 7.3mm
Current Rating 1.24A
Inductance 15μH
Test Frequency 2.52MHz
DC Resistance (DCR) 104mOhm Max
Max DC Current 1.24A
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Case/Size Code 3128
Self Resonant Frequency 31.7MHz
Dimensions
Height 4mm
Height Seated (Max) 0.157 4.00mm
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
