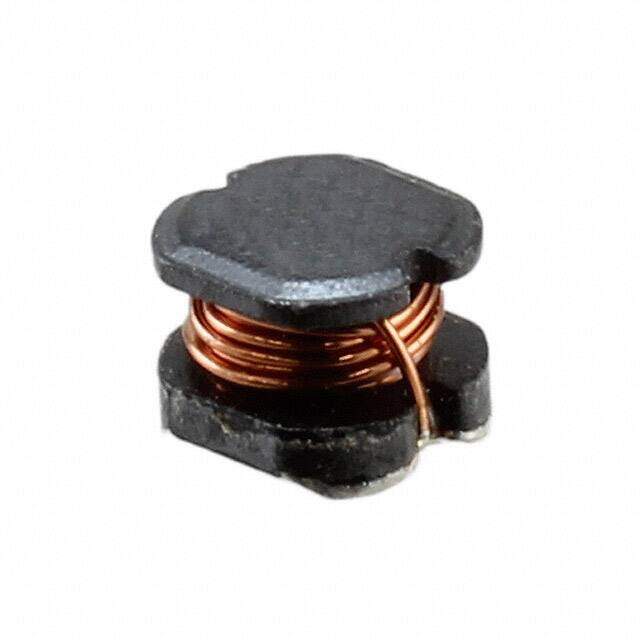

CD43NP-3R9MC image
Favorite
CD43NP-3R9MC image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description CD43 Nonstandard 0.177Lx0.157W 4.50mmx4.00mm 3.9muH
PDF
/
Inventory: 2355
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Terminal Shape ONE SURFACE
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Ferrite
Weight 164.994225mg

Supply Chain

Factory Lead Time 15 Weeks

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Height Seated (Max) 0.138 3.50mm
Height 3.5mm

Technical

Self Resonant Frequency 53.8MHz
Case/Size Code 1816
Inductor Type GENERAL PURPOSE INDUCTOR
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
Max DC Current 1.84A
DC Resistance (DCR) 93.7mOhm Max
Test Frequency 7.96MHz
Inductance 3.9μH
Current Rating 1.84A
Depth 4.3mm
Number of Functions 1
Shielding NO
HTS Code 8504.50.80.00
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Pbfree Code yes
Tolerance ±20%
Size / Dimension 0.177Lx0.157W 4.50mmx4.00mm
Series CD43
Published 2006
Packaging Cut Tape (CT)
Operating Temperature -40°C~100°C
