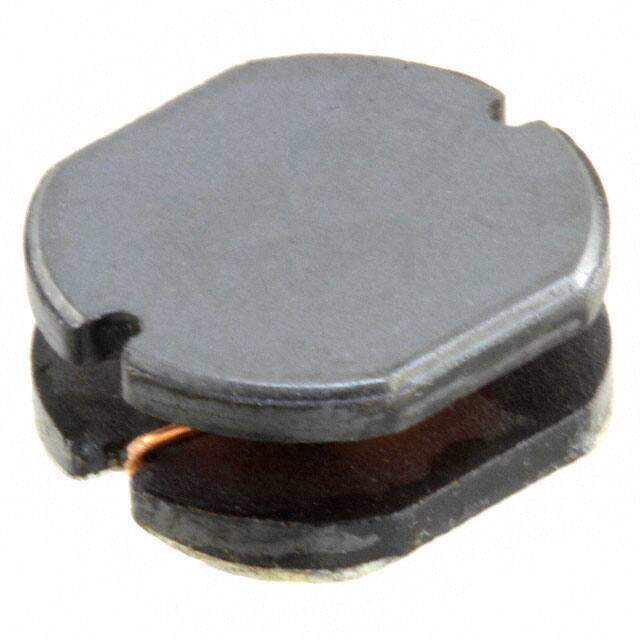

CD104NP-820KC image
Favorite
CD104NP-820KC image
Favorite
RoHS
RoHS RoHS compliant
Package Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description CD104 Nonstandard 0.394Lx0.354W 10.00mmx9.00mm 82muH
PDF
/
Inventory: 6046
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Series CD104
Size / Dimension 0.394Lx0.354W 10.00mmx9.00mm
Tolerance ±10%
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination SMD/SMT
ECCN Code EAR99
HTS Code 8504.50.80.00
Shielding NO
Number of Functions 1
Depth 9.3mm
Current Rating 850mA
Inductance 82μH
Test Frequency 2.52MHz
DC Resistance (DCR) 252mOhm Max
Max DC Current 850mA
Frequency - Self Resonant 10MHz
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductor Type GENERAL PURPOSE INDUCTOR
Case/Size Code 3935
Published 2006
Packaging Tape & Reel (TR)
Operating Temperature -40°C~100°C

Dimensions

Height 4.5mm
Height Seated (Max) 0.177 4.50mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant

Physical

Shape/Size Description RECTANGULAR PACKAGE
Terminal Shape ONE SURFACE
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount

Supply Chain

Factory Lead Time 12 Weeks
