0630CDMCDDS-R47MC
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
0630CDMC/DS Nonstandard 0.276Lx0.260W 7.00mmx6.60mm 470nH
PDF
/
Buying Options
Total Price: USD $0.73
Unit Price: USD $0.7304
≥1 USD $0.7304
≥10 USD $0.61864
≥100 USD $0.562848
≥500 USD $0.52888
≥1000 USD $0.438944
≥3000 USD $0.405152
Inventory: 1097
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Height Seated (Max) 0.118 3.00mm
Technical
Rated Current-Max 19.5A
Case/Size Code 2826
Current - Saturation 24.2A
Inductance Frequency - Test 100kHz
Terminal Placement DUAL ENDED
Inductor Application POWER INDUCTOR
DC Resistance (DCR) 4.1mOhm Max
Test Frequency 100kHz
Inductance 470nH
Current Rating 20A
Reach Compliance Code unknown
Construction Rectangular
Number of Functions 1
Shielding YES
Packing Method TR
HTS Code 8504.50.80.00
Type Molded
ECCN Code EAR99
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Tolerance ±20%
Size / Dimension 0.276Lx0.260W 7.00mmx6.60mm
Series 0630CDMC/DS
Published 2015
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Shape/Size Description RECTANGULAR PACKAGE
Material - Core Metal
Terminal Shape WRAPAROUND
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 17 Weeks

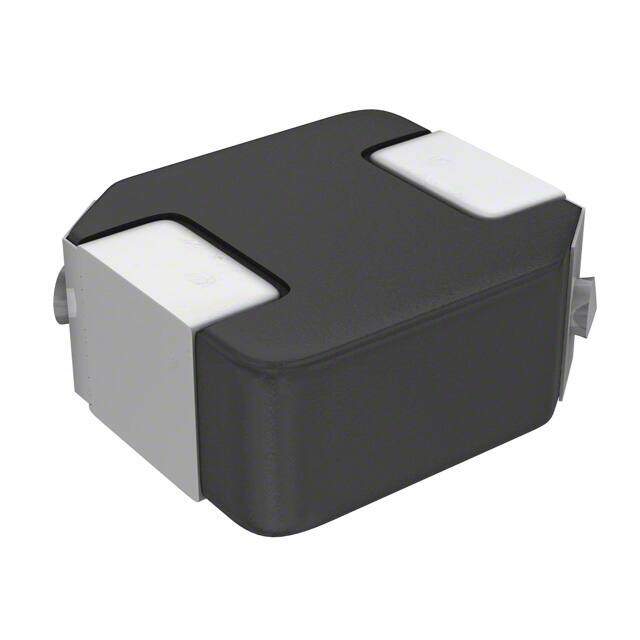

Alternative Model
