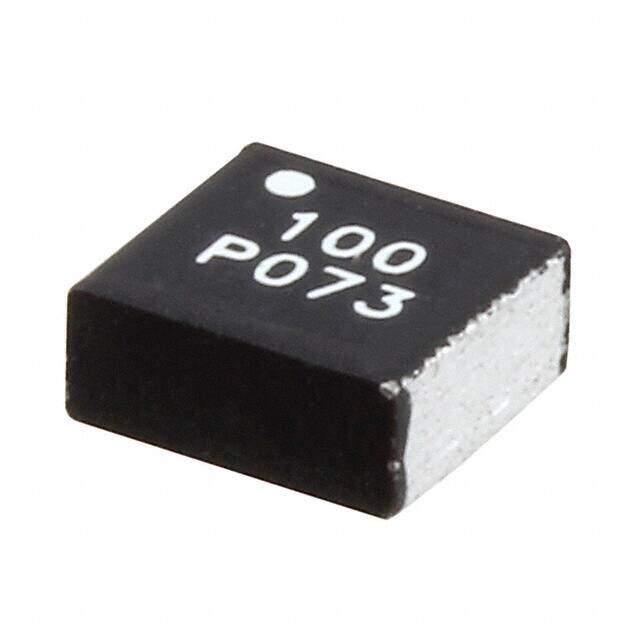

0420CDMCBDS-2R2MC
RoHS
RoHS compliant
RoHS compliantPackage 2-SMD
Category Inductors, Coils, Chokes / Fixed Inductors
Description
0420CDMCB/DS 2-SMD 0.177Lx0.161W 4.50mmx4.10mm 2.2muH
PDF
/
Inventory: 4838
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2-SMD
Terminal Shape WRAPAROUND
Number of Pins 2
Shape/Size Description RECTANGULAR PACKAGE
Technical
Operating Temperature -40°C~105°C
Packaging Cut Tape (CT)
Published 2012
Series 0420CDMCB/DS
Size / Dimension 0.177Lx0.161W 4.50mmx4.10mm
Tolerance ±20%
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Type Wirewound
HTS Code 8504.50.80.00
Current Rating (Amps) 3.9A
Shielding YES
Number of Functions 1
Reach Compliance Code unknown
Current Rating 4.5A
Inductance 2.2μH
Test Frequency 100kHz
DC Resistance (DCR) 35mOhm
Inductor Application POWER INDUCTOR
Terminal Placement DUAL ENDED
Inductance Frequency - Test 100kHz
Case/Size Code 1917
Dimensions
Height Seated (Max) 0.079 2.00mm
Compliance
RoHS Status ROHS3 Compliant
