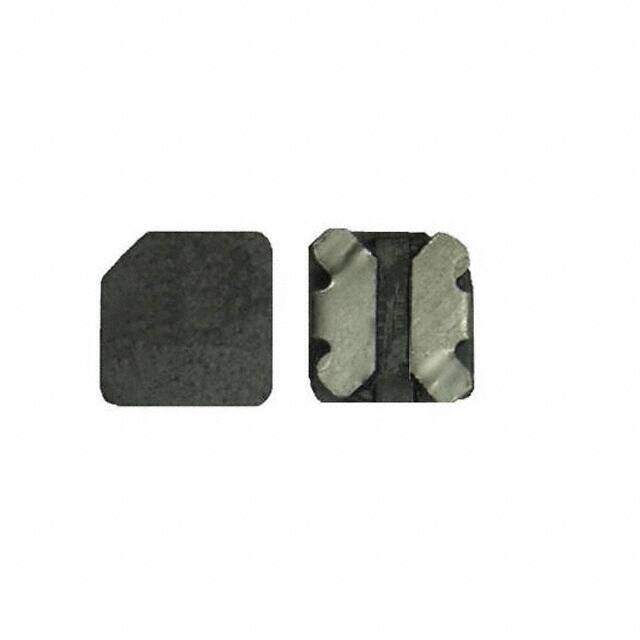

SCTH2010-3R3
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 3.3UH 680MA 265 MOHM
PDF
/
Inventory: 983
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 2.0066mm
Length 2.0066mm
Height Seated (Max) 0.039 1.00mm
Technical
Current - Saturation 680mA
Inductance Frequency - Test 100kHz
DC Resistance (DCR) 265mOhm Max
Test Frequency 100kHz
Inductance 3.3μH
Current Rating 680mA
Shielding Shielded
Current Rating (Amps) 680mA
Min Operating Temperature -40°C
Max Operating Temperature 125°C
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Tolerance ±20%
Size / Dimension 0.079Lx0.079W 2.00mmx2.00mm
Series SCTH2010
Published 2009
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C
Physical
Package / Case Nonstandard
Mounting Type Surface Mount
Mount Surface Mount
