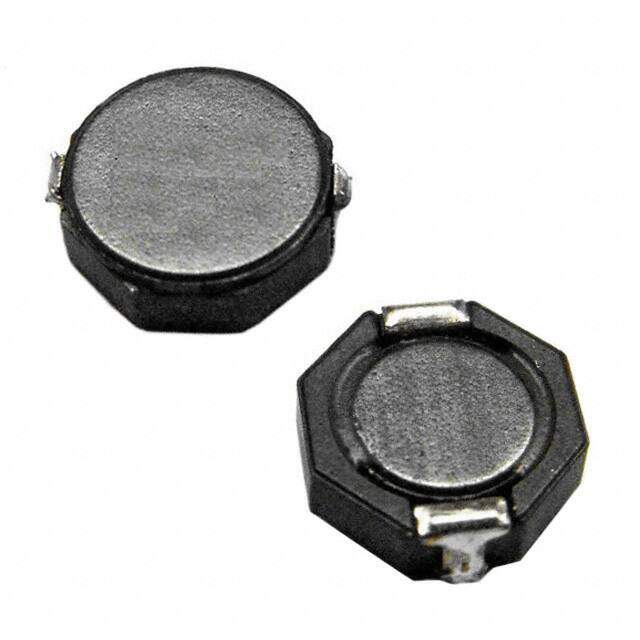

SCRH8D28-220
RoHS
RoHS compliant
RoHS compliantPackage Nonstandard
Category Inductors, Coils, Chokes / Fixed Inductors
Description
FIXED IND 22UH 1.6A 99 MOHM SMD
PDF
/
Inventory: 8636
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 18 Weeks
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case Nonstandard
Technical
Operating Temperature -40°C~125°C
Packaging Tape & Reel (TR)
Published 2009
Series SCRH8D28
Size / Dimension 0.327Lx0.327W 8.30mmx8.30mm
Tolerance ±30%
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Max Operating Temperature 125°C
Min Operating Temperature -40°C
Current Rating (Amps) 1.6A
Shielding Shielded
Current Rating 1.6A
Inductance 22μH
Test Frequency 100kHz
DC Resistance (DCR) 99mOhm Max
Inductance Frequency - Test 100kHz
Current - Saturation 1.6A
Dimensions
Height Seated (Max) 0.126 3.20mm
Length 8.3058mm
Width 8.3058mm
Compliance
RoHS Status ROHS3 Compliant
